- Country
- Australia
- Manufacturer / Brand
- Lekmek Radio Laboratories; Sydney
- Year
- 1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 166115
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 9 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 200-260 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

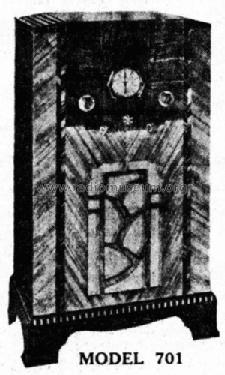

- Model: 701 - Lekmek Radio Laboratories;
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- Has three short wave bands; 10-25, 20-45, 45-100 metres. 56 oscillator only works on the short wave bands. The 57 works as an autodyne converter on the medium wave band.
- Price in first year of sale
- 37.88 Aus£
- Mentioned in
- Wireless Weekly (Australia) (Advert in W.W. for 15/06/34, P38.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
