• Country
• France

• Manufacturer / Brand
• Lemouzy; Paris

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62928

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8 6K7 6Q7 6F6 5Y3

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 115-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 19 cm = 7.5 inch

• Material
• Wooden case

• from Radiomuseum.org

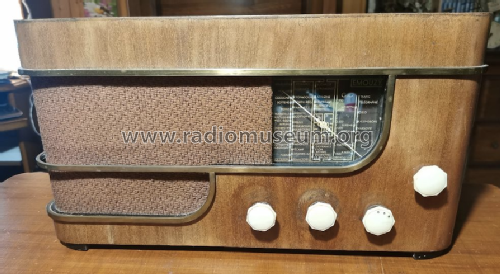

• Model: HR5 - Lemouzy; Paris

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 480 x 240 x 250 mm / 18.9 x 9.4 x 9.8 inch

• Notes

• Supplément 25 périodes: 35 FRF.

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• Price in first year of sale
• 1,660.00 FRF

• External source of data
• Serge Laffont/Martin Renoth

• Source of data
• Le grand livre de la TSF
