500

Country:  Switzerland
Manufacturer / Brand:  Lenco; Burgdorf
Year: 1969 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 14:
Main principle Audio-Amplification; 5 AF stage(s)
Wave bands - without
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: 500 - Lenco; Burgdorf
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 395 x 160 x 330 mm / 15.6 x 6.3 x 13 inch

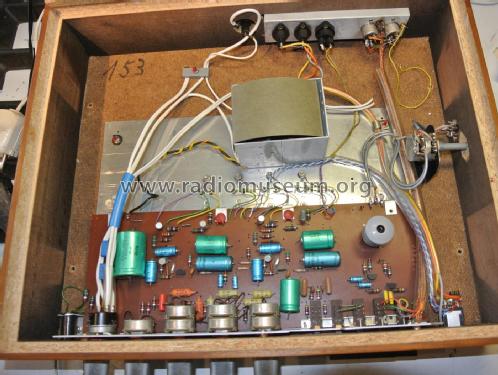

Notes Tr: 4xBC109, 2xAC126, 2xAC127, 2xAC132, 4xAD149, Plattenspieler Chassis Typ L 500 (Reibrad-Antrieb, 16, 33, 45, 78 Upm, Blechteller, TA Keramik, Antiskating) in Holzzarge mit eingebautem Verstärker HEA Stereo 1600, Ueberbrückungsstecker anstelle MM-Vorverstärker HEA Stereo VVST 101, Gerät ist 2fach gefedert, Haube ohne Scharnier.
Source of data -- Collector info (Sammler) / Radiokatalog Band 2, Ernst Erb

Model page created by Urs Gloor. See "Data change" for further contributors.
