Neva (Нева) 1951

Neva 1951; Leningrad Metallic (ID = 261550) Radio

Neva 1951; Leningrad Metallic (ID = 261551) Radio

Neva 1951; Leningrad Metallic (ID = 261549) Radio

Neva 1951; Leningrad Metallic (ID = 1670119) Radio

Neva 1951; Leningrad Metallic (ID = 1670122) Radio

Neva 1951; Leningrad Metallic (ID = 1670123) Radio
Neva 1951; Leningrad Metallic (ID = 2251589) Radio Neva 1951; Leningrad Metallic (ID = 2251590) Radio
Neva 1951; Leningrad Metallic (ID = 2251591) Radio Neva 1951; Leningrad Metallic (ID = 2251592) Radio
Neva 1951; Leningrad Metallic (ID = 261548) Radio Neva 1951; Leningrad Metallic (ID = 933284) Radio
Neva 1951; Leningrad Metallic (ID = 1670106) Radio Neva 1951; Leningrad Metallic (ID = 1670108) Radio
Use red slider bar for more.
Neva 1951; Leningrad Metallic (ID = 2251589) Radio
Leningrad Metallic: Neva 1951 [Radio] ID = 2251589 1024x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model Neva (Нева) 1951, Leningrad Metallic Works

Country:  Soviet Union
Manufacturer / Brand:  Leningrad Metallic Works
Year: 1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 6К3 6А8 6К3 6Г7 6Е5С 6С5С 6П3С 6С5С 5Ц4С
Main principle Super-Heterodyne (Super in general); ZF/IF 465 kHz
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110, 127, 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Neva 1951 - Leningrad Metallic Works
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 580 x 372 x 280 mm / 22.8 x 14.6 x 11 inch
Notes Prototype was one of Polish "Elektrit" radio set models, till WW2 (from 1939 -Minsk Radio Works, SU).
Net weight (2.2 lb = 1 kg) 20 kg / 44 lb 0.8 oz (44.053 lb)

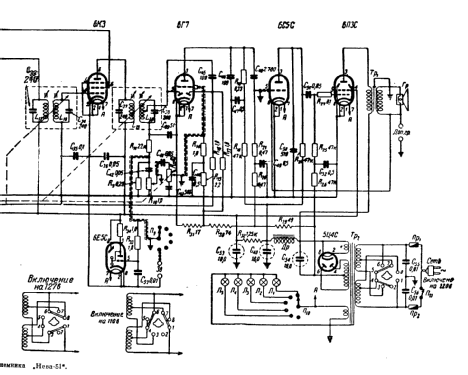

Source of data -- Schematic
Mentioned in E.A. Levitin "Radio sets" Moscow 1960

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
