Leningrad - Ленинград 004

Leningrad - Ленинград 004; Leningrad NOVATOR (ID = 2208136) Radio Leningrad - Ленинград 004; Leningrad NOVATOR (ID = 2208261) Radio

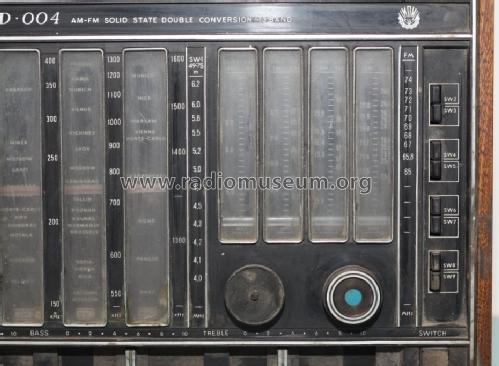

Leningrad - Ленинград 004; Leningrad NOVATOR (ID = 2208262) Radio Leningrad - Ленинград 004; Leningrad NOVATOR (ID = 2208264) Radio
Use red slider bar for more.

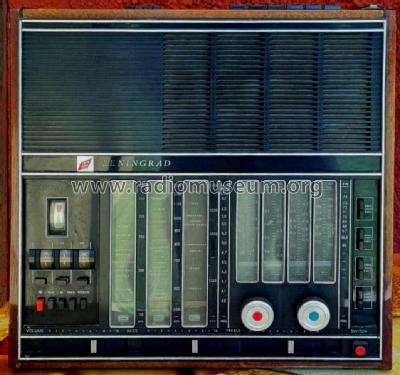

Leningrad - Ленинград 004; Leningrad NOVATOR (ID = 2208136) Radio
Leningrad NOVATOR: Leningrad - Ленинград 004 [Radio] ID = 2208136 655x624
Select picture or schematic to display from thumbnails on the right and click for download.
For model Leningrad - Ленинград 004, Leningrad NOVATOR Works

Country:  Soviet Union
Manufacturer / Brand:  Leningrad NOVATOR Works
Year: 1975 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general); Export model
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 127; 220 / 6×1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (max.)
from Radiomuseum.org Model: Leningrad - Ленинград 004 - Leningrad NOVATOR Works
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 390 x 394 x 164 mm / 15.4 x 15.5 x 6.5 inch
Notes

Export version of Leningrad 002. FM frequency range (CCIR or OIRT) depended on target country.

Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)

Model page created by Grigoriy Krykunenko. See "Data change" for further contributors.
