Amplificatore audio stereo HF841

Amplificatore audio stereo HF841; LESA ; Milano (ID = 2452678) Ampl/Mixer Amplificatore audio stereo HF841; LESA ; Milano (ID = 2452679) Ampl/Mixer
Amplificatore audio stereo HF841; LESA ; Milano (ID = 2452680) Ampl/Mixer Amplificatore audio stereo HF841; LESA ; Milano (ID = 2452681) Ampl/Mixer

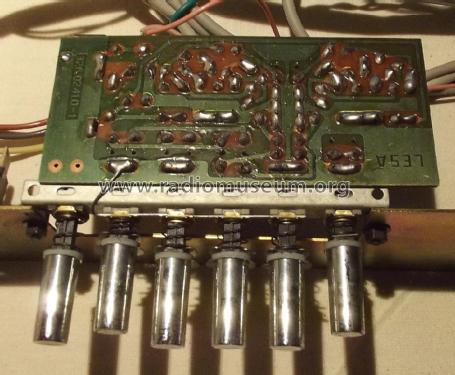

Amplificatore audio stereo HF841; LESA ; Milano (ID = 2452682) Ampl/Mixer Amplificatore audio stereo HF841; LESA ; Milano (ID = 2452683) Ampl/Mixer

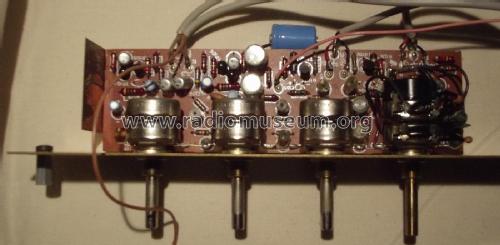

Amplificatore audio stereo HF841; LESA ; Milano (ID = 2452684) Ampl/Mixer Amplificatore audio stereo HF841; LESA ; Milano (ID = 2452685) Ampl/Mixer
Amplificatore audio stereo HF841; LESA ; Milano (ID = 2452687) Ampl/Mixer Amplificatore audio stereo HF841; LESA ; Milano (ID = 2452688) Ampl/Mixer
Use red slider bar for more.
Amplificatore audio stereo HF841; LESA ; Milano (ID = 2452678) Ampl/Mixer
LESA ; Milano: Amplificatore audio stereo HF841 [Ampl/Mixer] ID = 2452678 1400x587
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplificatore audio stereo HF841, LESA ; Milano

Country:  Italy
Manufacturer / Brand:  LESA ; Milano
Year: 1971 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 26: BC108 BC204 BC209 BC214 BC302 BC304 2N3055
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 125-220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 30 W (undistorted)
from Radiomuseum.org Model: Amplificatore audio stereo HF841 - LESA ; Milano
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 440 x 240 x 100 mm / 17.3 x 9.4 x 3.9 inch
Notes

Mobile impiallacciato in noce canaletto.

Each transistor type listed once only.



Net weight (2.2 lb = 1 kg) 4.7 kg / 10 lb 5.6 oz (10.352 lb)
Mentioned in -- Original-techn. papers. (LESA Rivista tecnico-commerciale "la Vetrina" settembre 1971)

Model page created by Umberto Incardona. See "Data change" for further contributors.



All listed radios etc. from LESA ; Milano
Here you find 156 models, 139 with images and 59 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
