HF 870 /A

HF 870 /A; LESA ; Milano (ID = 1474564) Ampl/Mixer HF 870 /A; LESA ; Milano (ID = 1447521) Ampl/Mixer

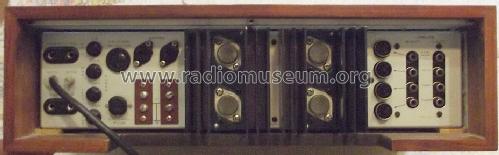

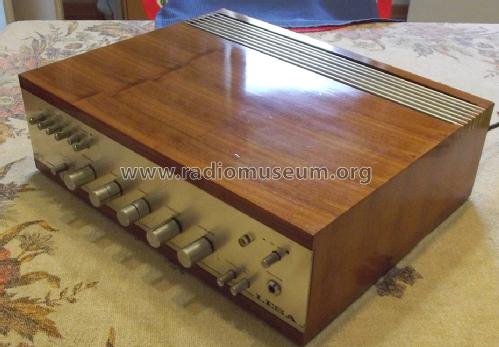

HF 870 /A; LESA ; Milano (ID = 1474563) Ampl/Mixer HF 870 /A; LESA ; Milano (ID = 1474566) Ampl/Mixer
Use red slider bar for more.
HF 870 /A; LESA ; Milano (ID = 1474564) Ampl/Mixer
LESA ; Milano: HF 870 /A [Ampl/Mixer] ID = 1474564 930x577
Select picture or schematic to display from thumbnails on the right and click for download.
For model HF 870 /A, LESA ; Milano

Country:  Italy
Manufacturer / Brand:  LESA ; Milano
Year: 1971 ?? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 30:
schematic requested
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 125-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 72 W (undistorted)
from Radiomuseum.org Model: HF 870 /A - LESA ; Milano
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 440 x 135 x 373 mm / 17.3 x 5.3 x 14.7 inch
Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)
Mentioned in -- Original prospect or advert

Model page created by Umberto Incardona. See "Data change" for further contributors.
