• Country
• Italy

• Manufacturer / Brand
• LESA ; Milano

• Year
• 1963

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 127724

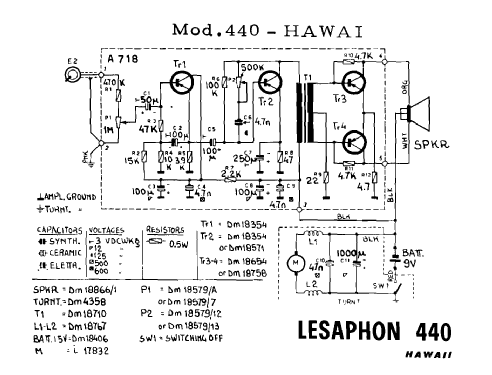

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Dry Batteries / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1.5 W (undistorted)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Lesaphon Hawaii 440 - LESA ; Milano

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 380 x 160 x 280 mm / 15 x 6.3 x 11 inch

• Notes

• Serie "Lesa Battery".

  Giradischi 4 velocità con rivelatore equalizzato piezoelettrico e puntine di zaffiro.
  Cartuccia E2.
  Regolatori di volume e di tono.
  Cinghia allungabile per facilitarne il transporto.

• Net weight (2.2 lb = 1 kg)
• 3.9 kg / 8 lb 9.4 oz (8.59 lb)

• Price in first year of sale
• 36,900.00 ITL

• Mentioned in
• - - Manufacturers Literature (La Vetrina N. 3, Novembre 1963)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
