Lesaphon Topazio Stereo 380 (LF380)

• Country
• Italy

• Manufacturer / Brand
• LESA ; Milano

• Year
• 1964 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 291174

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• ECL86 ECL86

• Number of Transistors

• Semiconductors
• unknown_diode unknown_diode

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 125; 160; 220 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 14 cm = 5.5 inch

• Power out
• 3 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Lesaphon Topazio Stereo 380 - LESA ; Milano

• Shape

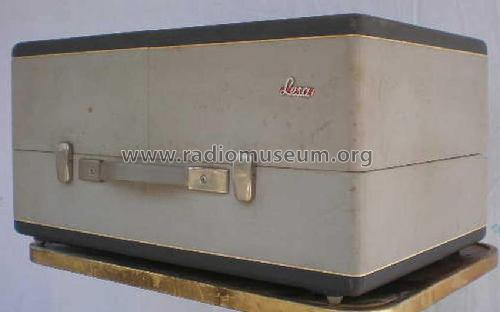

• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 485 x 250 x 320 mm / 19.1 x 9.8 x 12.6 inch

• Notes

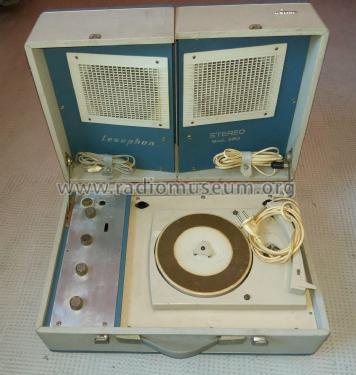

• Fonovaligia stereo a 4 velocità: 16, 33, 45, e 78 giri. Puntine intercambiabili per 78 giri e per microsolco. Altoparlanti staccabili di 14 cm di diametro.

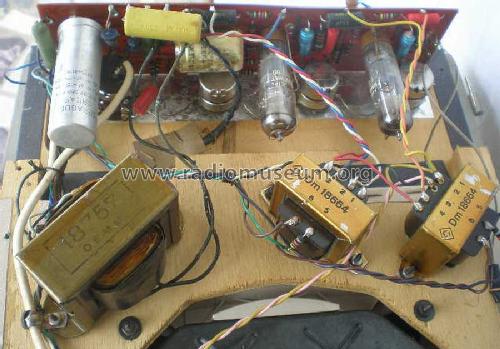

  Amplificatore costituito da 2 valvole ECL86, 4 funzioni valvolari, più 2 diodi al silicio per raddrizzare l'alternata.

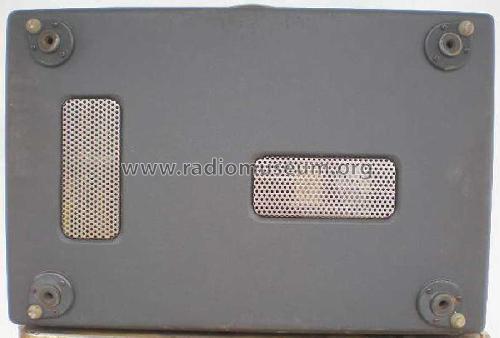

  Dotato di 4 supporti metallici rimovibili in modo da poterlo usare come soprammobile o come console.

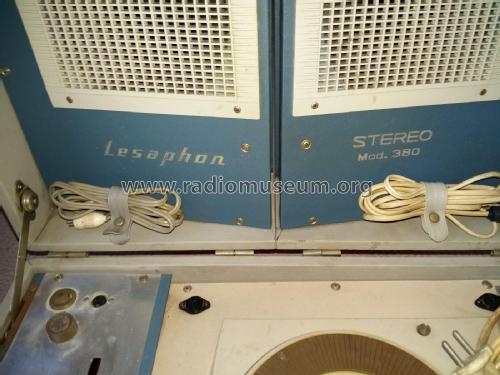

  Ci sono due versioni della valigia: una che ha "Topazio" sugli altoparlante, l'altra con "Stereo Mod. 380"

• Price in first year of sale
• 59,000.00 ITL

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Fabio Masetti. See "Data change" for further contributors.
