• Country
• Italy

• Manufacturer / Brand
• LIAR; Milano

• Year
• 1947/1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 95736

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6K8 6K7 6Q7 6V6 5Y3

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 160; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 535 - LIAR; Milano

• Shape
• Tablemodel, low profile (big size).

• Notes

• Ingresso per giradischi. Una pubblicità su "Radio Industria" numero 131-132 del 1947 indica come convertitrice la 6A8 anzichè la 6K8.

• Source of data
• Guida Pratica Antique Radio IV (2001)

• Mentioned in
• Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 116)

• Literature/Schematics (1)
• Riparazioni - Scuola Radio Elettra (pag. L2)

• Literature/Schematics (2)

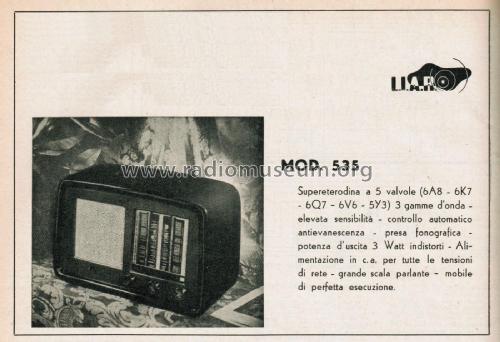

• -- Original prospect or advert (Radio Industria numero 131-132 1947)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
