Elektronik-Experimentier-System EX-150

Elektronik-Experimentier-System EX-150; LINDY-Elektronik (ID = 482694) Kit Elektronik-Experimentier-System EX-150; LINDY-Elektronik (ID = 483511) Kit
Elektronik-Experimentier-System EX-150; LINDY-Elektronik (ID = 1832223) Kit Elektronik-Experimentier-System EX-150; LINDY-Elektronik (ID = 1832224) Kit
Elektronik-Experimentier-System EX-150; LINDY-Elektronik (ID = 1832225) Kit Elektronik-Experimentier-System EX-150; LINDY-Elektronik (ID = 1832226) Kit
Elektronik-Experimentier-System EX-150; LINDY-Elektronik (ID = 1832227) Kit Elektronik-Experimentier-System EX-150; LINDY-Elektronik (ID = 1832229) Kit
Elektronik-Experimentier-System EX-150; LINDY-Elektronik (ID = 1832230) Kit Elektronik-Experimentier-System EX-150; LINDY-Elektronik (ID = 1832231) Kit
Use red slider bar for more.
Elektronik-Experimentier-System EX-150; LINDY-Elektronik (ID = 482694) Kit
LINDY-Elektronik: Elektronik-Experimentier-System EX-150 [Kit] ID = 482694 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Elektronik-Experimentier-System EX-150, LINDY-Elektronik GmbH; Mannheim

Country:  Germany
Manufacturer / Brand:  LINDY-Elektronik GmbH; Mannheim
Brand

Lindenberg Industrievertretung
Year: 1975 ?? Category: Kit (Parts plus instruction) or building instructions only
Semiconductors (the count is only for transistors) 1: 2SC536 M5118 Diode_Ge
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out
from Radiomuseum.org Model: Elektronik-Experimentier-System EX-150 - LINDY-Elektronik GmbH;
Material Plastics (no bakelite or catalin)
Notes

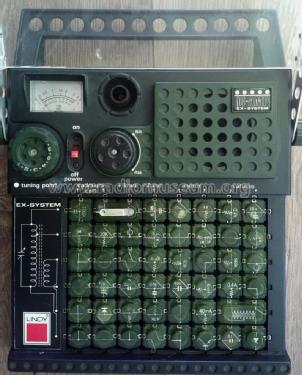

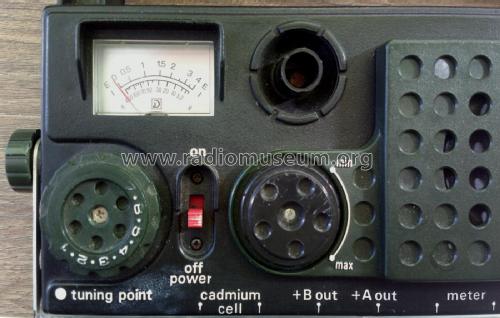

Grundgerät und 46 Blockbausteine für 150 verschiedene Experimente. Der integrierte Schaltkreis (M5118L) ist direkt mit dem eingebauten Potentiometer (Lautstärkeregler) und dem Lautsprecher verbunden.

Ähnliche Lehrsysteme - nach Reduzierung um 16 Bausteine, Anzeigeinstrument (meter), LDR (cadmium cell) und Kristallmikrofon - sind Lindy Experimentiersystem EX-60 und Lindy Elektronik EX2000 (Sonderausgabe, gleicher Inhalt) mit jeweils 60 Experimenten.

Mentioned in -- Collector info (Sammler)

Model page created by Hans Völkening. See "Data change" for further contributors.
