• Year
  • 1948 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 270706

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Power type and voltage
  • AC/DC-set / 110; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material

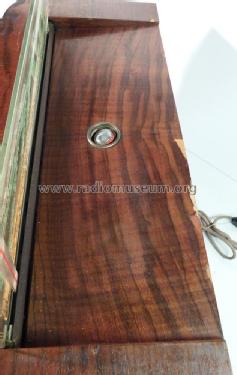

  • Wooden case
  • from Radiomuseum.org

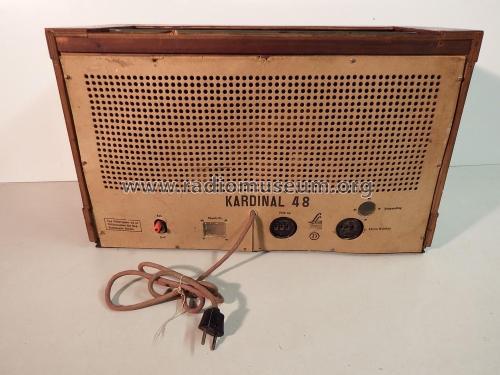

  • Model: Kardinal 48 - Linnet & Laursen LL A/S;
  • Shape
  • Tablemodel, low profile (big size).
  • Literature/Schematics (1)
  • -- Schematic
  • Author
  • Model page created by Tomasz Szczesniak. See "Data change" for further contributors.
