Kent 8563

Kent 8563; Lissen Ltd.; London (ID = 2005124) Radio Kent 8563; Lissen Ltd.; London (ID = 2005125) Radio
Kent 8563; Lissen Ltd.; London (ID = 2005126) Radio Kent 8563; Lissen Ltd.; London (ID = 2005127) Radio
Use red slider bar for more.
Kent 8563; Lissen Ltd.; London (ID = 2005124) Radio
Lissen Ltd.; London: Kent 8563 [Radio] ID = 2005124 602x800
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kent 8563, Lissen Ltd.; London and Richmond, Surrey:
ebay clem1914 item 381654986636

Country:  Great Britain (UK)
Manufacturer / Brand:  Lissen Ltd.; London and Richmond, Surrey
Year: 1940 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH3 EF9 EB4 EL3 AZ1
Main principle Superheterodyne (common); ZF/IF 452 kHz; 1 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Kent 8563 - Lissen Ltd.; London and
Material Wooden case
Dimensions (WHD) 390 x 485 x 290 mm / 15.4 x 19.1 x 11.4 inch
Notes

Probably one of the last Lissen models, about 1941. Very similar chassis to Portland 8503 but EB4 instead of EBC3, or York 8547/A, but EB4  & EL3 instead of EBL1.

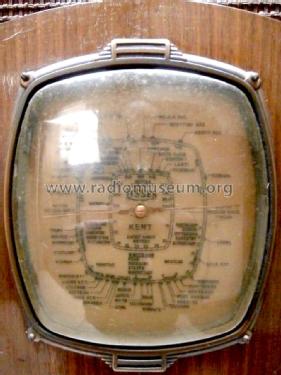

Tuning scale is marked "Kent".





Mentioned in - - Manufacturers Literature (Mullard Valve Replacement Guide 1933-1949)

Model page created by Michael Watterson. See "Data change" for further contributors.
