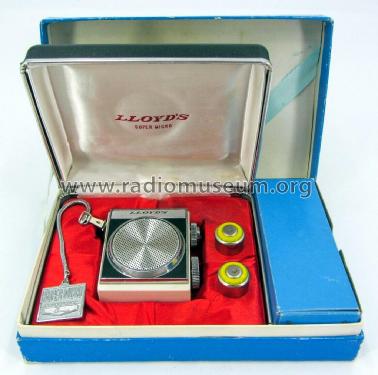

Super Micro 5K05A (Japan 517)

Country:  United States of America (USA)
Manufacturer / Brand:  Lloyd's Electronics; Chicago, IL
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 2 x 1.3 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 1.5 inch = 3.8 cm
Power out
from Radiomuseum.org Model: Super Micro 5K05A - Lloyd's Electronics; Chicago,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 1.75 x 1 x 2 inch / 44 x 25 x 51 mm
Notes

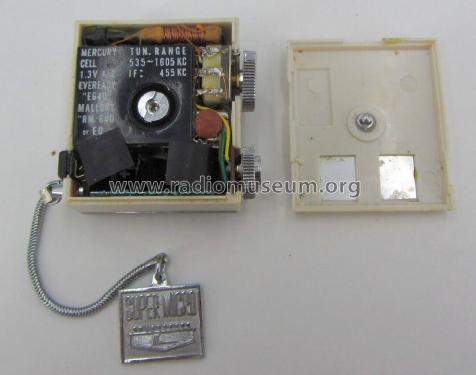

See also model 5K05B. They are all most similar to Standard SR-H437 and Fantavox TA-8001.  They use type E 640 or RM-640 mercury cells.

Made in Japan 517

Net weight (2.2 lb = 1 kg) 0 lb 4 oz (0.25 lb) / 0.114 kg

Model page created by Ernst Erb. See "Data change" for further contributors.
