• Year
  • 1953 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 223773

 Technical Specifications

  • Number of Tubes
  • 5
  • Number of Transistors
  • Main principle
  • Superhet with RF-stage; ZF/IF 480 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Line / Batteries (any type) / AC/DC 110; 127; 155; 220 / 9 & 90 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Bakelite case
  • from Radiomuseum.org

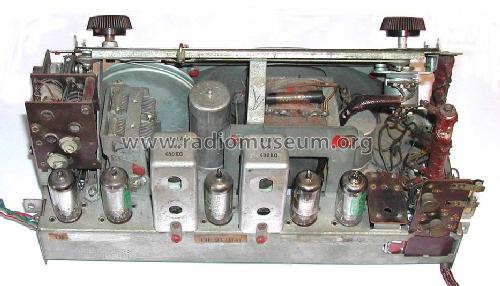

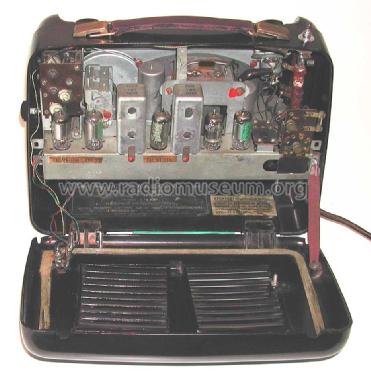

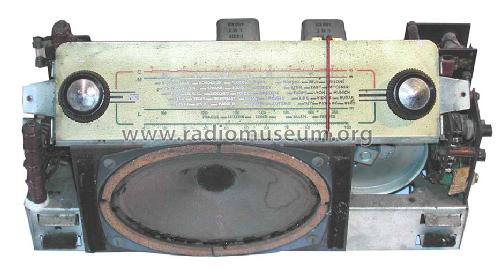

  • Model: Week-End [DL91 / 1S4] - LMT L.M.T., Le Matériel
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 310 x 230 x 160 mm / 12.2 x 9.1 x 6.3 inch
  • Notes
  • Im Netzbetrieb Allstrom. Selbsttätige Netztrennung bei Öffnen des Gerätes.
  • Net weight (2.2 lb = 1 kg)
  • 3 kg / 6 lb 9.7 oz (6.608 lb)
