4 Band Radio Recorder TC414 Art.-Nr. 58200

4 Band Radio Recorder TC414 Art.-Nr. 58200; Loewe-Opta; (ID = 1793427) Radio

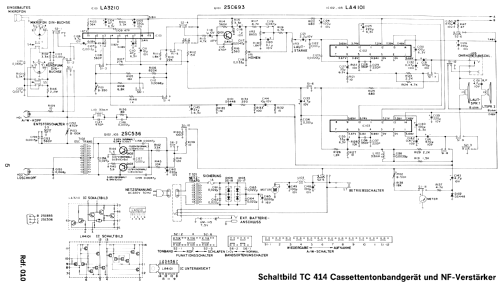

4 Band Radio Recorder TC414 Art.-Nr. 58200; Loewe-Opta; (ID = 1793428) Radio

4 Band Radio Recorder TC414 Art.-Nr. 58200; Loewe-Opta; (ID = 1793429) Radio

4 Band Radio Recorder TC414 Art.-Nr. 58200; Loewe-Opta; (ID = 1793431) Radio

4 Band Radio Recorder TC414 Art.-Nr. 58200; Loewe-Opta; (ID = 1793432) Radio

4 Band Radio Recorder TC414 Art.-Nr. 58200; Loewe-Opta; (ID = 1793433) Radio

4 Band Radio Recorder TC414 Art.-Nr. 58200; Loewe-Opta; (ID = 1793434) Radio

4 Band Radio Recorder TC414 Art.-Nr. 58200; Loewe-Opta; (ID = 1793435) Radio
4 Band Radio Recorder TC414 Art.-Nr. 58200; Loewe-Opta; (ID = 1793436) Radio
Use red slider bar for more.

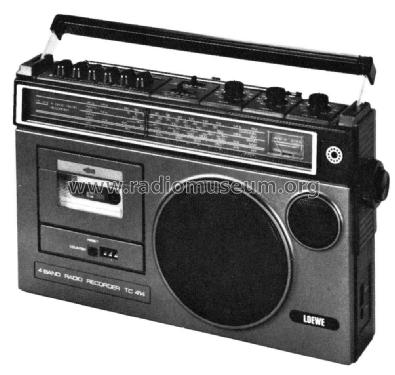

4 Band Radio Recorder TC414 Art.-Nr. 58200; Loewe-Opta; (ID = 1793436) Radio
Loewe-Opta;: 4 Band Radio Recorder TC414 Art.-Nr. 58200 [Radio] ID = 1793436 999x947
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4 Band Radio Recorder TC414 Art.-Nr. 58200, Loewe-(Opta); Deutschland:
Aus den Service-Unterlagen

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1978 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220 / 5 x 1,5 Volt
Loudspeaker 2 Loudspeakers
Power out 2.5 W (3.5 W max.)
from Radiomuseum.org Model: 4 Band Radio Recorder TC414 Art.-Nr. 58200 - Loewe-Opta; Deutschland
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes

Mono-Radiorecorder

Mentioned in -- Original-techn. papers.

Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
