852W EF85

852W; Loewe-Opta; (ID = 414460) Radio

852W; Loewe-Opta; (ID = 414461) Radio
852W; Loewe-Opta; (ID = 387) Radio 852W; Loewe-Opta; (ID = 2577767) Radio
Use red slider bar for more.
852W; Loewe-Opta; (ID = 387) Radio
Loewe-Opta;: 852W [Radio] ID = 387 626x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model 852W EF85, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECH11 EF85 ECF12 EAA91 EM11 EL11 AZ11
Main principle Superheterodyne (common); ZF/IF 473/10700 kHz
Tuned circuits 7 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
Power out
from Radiomuseum.org Model: 852W [EF85] - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 520 x 365 x 240 mm / 20.5 x 14.4 x 9.4 inch
Notes

Siehe auch Variante mit EF43.

Net weight (2.2 lb = 1 kg) 10.8 kg / 23 lb 12.6 oz (23.789 lb)
Price in first year of sale 328.00 DM

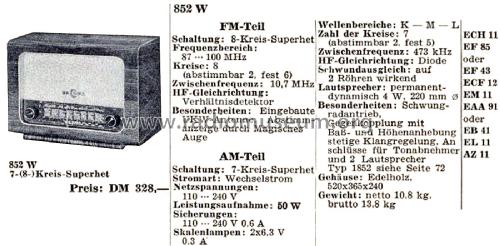

Source of data Kat.d.Rundf.GrossH.1951/52 / Radiokatalog Band 1, Ernst Erb
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
