• Country
• Germany

• Manufacturer / Brand
• Loewe-(Opta); Deutschland

• Year
• 1968/1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 27442

• • alternative name: Löwe Radio

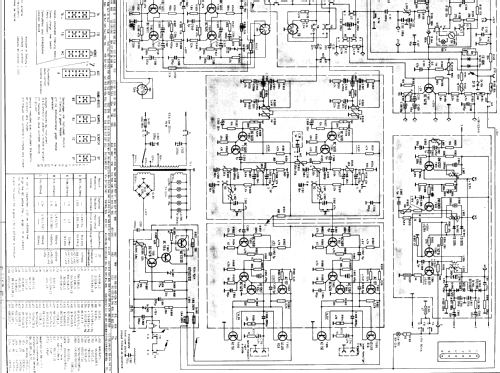

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 39

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     15 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

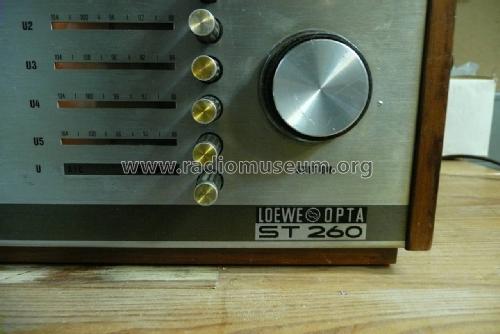

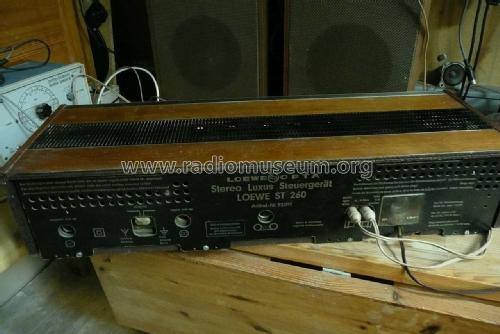

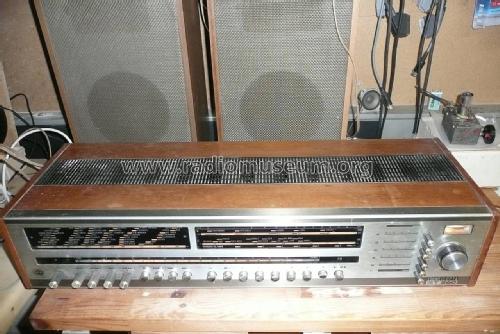

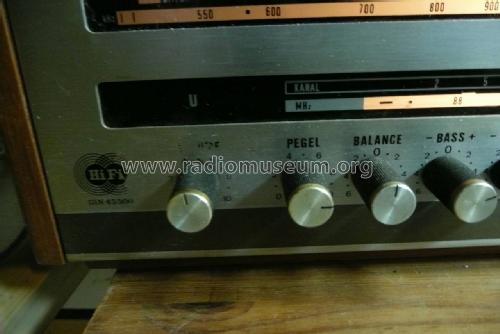

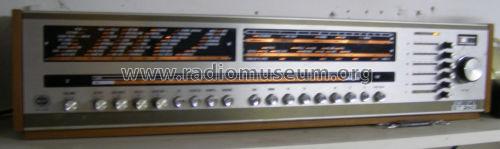

• Model: ST260 92091 - Loewe-Opta; Deutschland

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 660 x 140 x 220 mm / 26 x 5.5 x 8.7 inch

• Notes
• HiFi-Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 22 W (Sinus).

• Net weight (2.2 lb = 1 kg)
• 10.5 kg / 23 lb 2 oz (23.128 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1968/1969
