Arosa 83 141

Arosa 83 141; Loewe-Opta; (ID = 709839) Television

Arosa 83 141; Loewe-Opta; (ID = 709841) Television
Arosa 83 141; Loewe-Opta; (ID = 301409) Television
Use red slider bar for more.

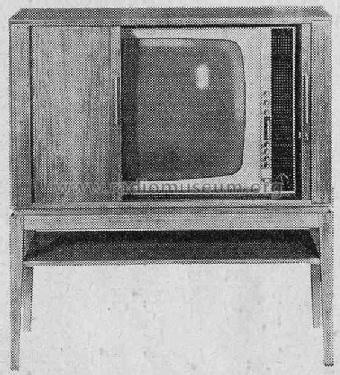

Arosa 83 141; Loewe-Opta; (ID = 301409) Television
Loewe-Opta;: Arosa 83 141 [Television] ID = 301409 564x622
Select picture or schematic to display from thumbnails on the right and click for download.
For model Arosa 83 141, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1966/1967 Category: Television Receiver (TV) or Monitor
Valves / Tubes 11: PC900 PCF801 PCL86 PCL200 PCH200 PCF802 PCL85 PL500 PY88 DY86 A59-11W or A59-12W
Semiconductors (the count is only for transistors) 7: AF139 AF139 AF200 AF201 AF201 AF202 2N3702
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Arosa 83 141 - Loewe-Opta; Deutschland
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 825 x 885 x 315 mm / 32.5 x 34.8 x 12.4 inch
Notes VHF/UHF.
Net weight (2.2 lb = 1 kg) 38 kg / 83 lb 11.2 oz (83.7 lb)
External source of data erb
Source of data Handbuch VDRG 1966/1967
