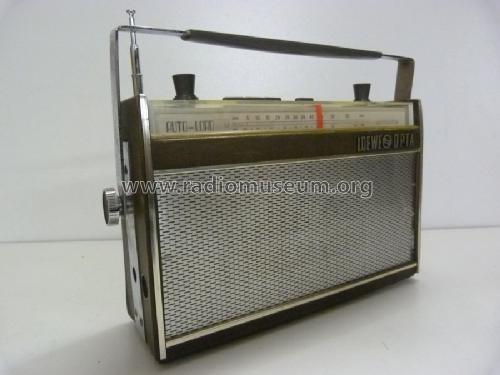

For model Auto-Lord 52 330, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF106 AF124 AF126 AF126 AF126 AF126 AC125 AC125 AC128 AC128
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     13 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 5 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Auto-Lord 52 330 - Loewe-Opta; Deutschland
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 285 x 185 x 87 mm / 11.2 x 7.3 x 3.4 inch
Notes Betrieb über 6-V- oder 12-V-Autobatterie möglich. Auf Wunsch auch mit 5-W-Endstufe.
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Price in first year of sale 449.00 DM
Source of data Handbuch VDRG 1964/1965 / Radiokatalog Band 1, Ernst Erb
