Color Sensotronic 2001 CP42

Color Sensotronic 2001 CP42; Loewe-Opta; (ID = 626594) Television

Color Sensotronic 2001 CP42; Loewe-Opta; (ID = 626595) Television
Color Sensotronic 2001 CP42; Loewe-Opta; (ID = 438697) Television Color Sensotronic 2001 CP42; Loewe-Opta; (ID = 803699) Television
Use red slider bar for more.

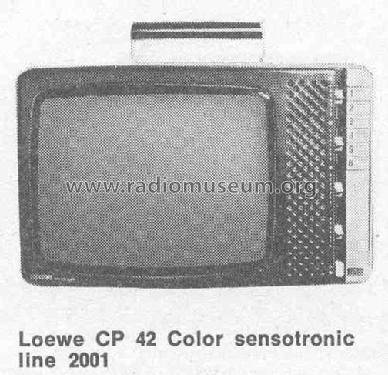

Color Sensotronic 2001 CP42; Loewe-Opta; (ID = 438697) Television
Loewe-Opta;: Color Sensotronic 2001 CP42 [Television] ID = 438697 505x487
Select picture or schematic to display from thumbnails on the right and click for download.
For model Color Sensotronic 2001 CP42, Loewe-(Opta); Deutschland:
Weiler Katalog 1973

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1973–1975 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: A42-100X
Semiconductors (the count is only for transistors) 26: BC237 BC307 BC337 BC327 16810 16811 BD165 BD517 BF459 TD3Fx00 BStB0440 BStB0226 SAS560 SAS570 TBA560 TBA920 TBA120 TBA800 TBA540 TBA990 TBA530 TDA440
Main principle Super-Heterodyne (Super in general)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Color Sensotronic 2001 CP42 - Loewe-Opta; Deutschland
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 540 x 370 x 380 mm / 21.3 x 14.6 x 15 inch
Notes 41 cm-Farbfernsehgerät, 10 ICs, 4 Thyristoren, Hochspannungsgleichrichter, VHF/UHF-Tuner.
Einige Halbleitertypen mehrfach vorhanden. 8-Programm-Berührungs-Sensoren. Gehäusfarbe: PERL. Verkauf über die Weltfunk anläßlich der Funkausstellung 1975.
Net weight (2.2 lb = 1 kg) 16.5 kg / 36 lb 5.5 oz (36.344 lb)
Mentioned in -- Original-techn. papers. (Weiler Angebot 1973/74)

Model page created by Karlheinz Fischer. See "Data change" for further contributors.
