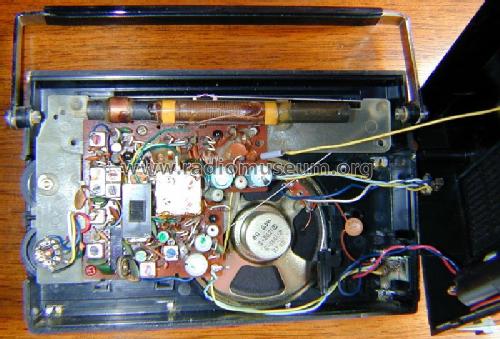

Dolly 51203; Loewe-Opta; (ID = 123404) Radio Dolly 51203; Loewe-Opta; (ID = 123401) Radio

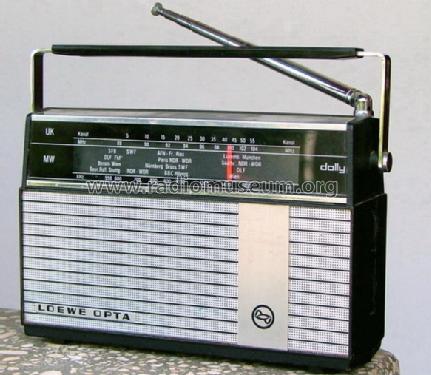

Dolly 51203; Loewe-Opta; (ID = 123402) Radio Dolly 51203; Loewe-Opta; (ID = 790718) Radio
Use red slider bar for more.
Dolly 51203; Loewe-Opta; (ID = 123399) Radio
Loewe-Opta;: Dolly 51203 [Radio] ID = 123399 800x452
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dolly 51203, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1971–1973 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2SC668 2SC930 2SA101 2SB185 2SC537 2SB187 2SD187 LA1201 1S188 1S188 1S188
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz
Tuned circuits 5 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 8 cm = 3.1 inch
Power out
from Radiomuseum.org Model: Dolly 51203 - Loewe-Opta; Deutschland
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 190 x 125 x 60 mm / 7.5 x 4.9 x 2.4 inch
Notes UKW: 88 - 104 MHz
MW: 505 - 1650 kHz
Net weight (2.2 lb = 1 kg) 0.6 kg / 1 lb 5.1 oz (1.322 lb)
Price in first year of sale 98.00 DM
Collectors' prices
External source of data Erb
Source of data Handbuch VDRG 1971/1972
Literature/Schematics (1) -- Original-techn. papers.
