F1220 Color electronic 52440

F1220 Color electronic 52440; Loewe-Opta; (ID = 432519) Television

F1220 Color electronic 52440; Loewe-Opta; (ID = 432521) Television

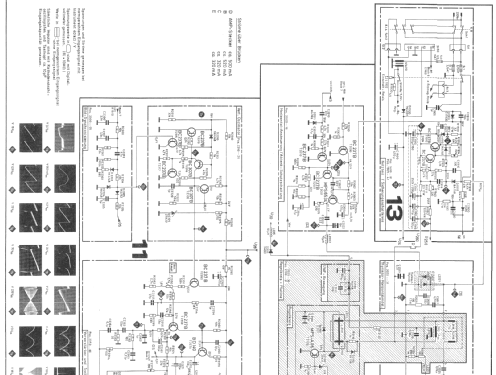

F1220 Color electronic 52440; Loewe-Opta; (ID = 432523) Television

F1220 Color electronic 52440; Loewe-Opta; (ID = 432524) Television
F1220 Color electronic 52440; Loewe-Opta; (ID = 1754139) Television F1220 Color electronic 52440; Loewe-Opta; (ID = 381009) Television
F1220 Color electronic 52440; Loewe-Opta; (ID = 1754140) Television
Use red slider bar for more.
F1220 Color electronic 52440; Loewe-Opta; (ID = 1754139) Television
Loewe-Opta;: F1220 Color electronic 52440 [Television] ID = 1754139 933x663
Select picture or schematic to display from thumbnails on the right and click for download.
For model F1220 Color electronic 52440, Loewe-(Opta); Deutschland:
Loewe Sales Brochure

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1973/1974 Category: Television Receiver (TV) or Monitor
Valves / Tubes 2: A66-140X ZM1332
Semiconductors (the count is only for transistors) 54:
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 5 W (unknown quality)
from Radiomuseum.org Model: F1220 Color electronic 52440 - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 755 x 520 x 465 mm / 29.7 x 20.5 x 18.3 inch
Notes 3 Thyristoren, 9 ICs. VHF/UHF.
Net weight (2.2 lb = 1 kg) 35.5 kg / 78 lb 3.1 oz (78.194 lb)
Source of data Handbuch VDRG 1973/1974
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
