Hellas-Stereo 5791W

Hellas-Stereo 5791W; Loewe-Opta; (ID = 36092) Radio

Hellas-Stereo 5791W; Loewe-Opta; (ID = 2038023) Radio

Hellas-Stereo 5791W; Loewe-Opta; (ID = 2038024) Radio
Hellas-Stereo 5791W; Loewe-Opta; (ID = 89322) Radio Hellas-Stereo 5791W; Loewe-Opta; (ID = 89323) Radio
Hellas-Stereo 5791W; Loewe-Opta; (ID = 89324) Radio Hellas-Stereo 5791W; Loewe-Opta; (ID = 89325) Radio
Hellas-Stereo 5791W; Loewe-Opta; (ID = 89326) Radio Hellas-Stereo 5791W; Loewe-Opta; (ID = 746454) Radio
Hellas-Stereo 5791W; Loewe-Opta; (ID = 746455) Radio Hellas-Stereo 5791W; Loewe-Opta; (ID = 746456) Radio
Hellas-Stereo 5791W; Loewe-Opta; (ID = 746457) Radio Hellas-Stereo 5791W; Loewe-Opta; (ID = 1414657) Radio
Use red slider bar for more.
Hellas-Stereo 5791W; Loewe-Opta; (ID = 89322) Radio
Loewe-Opta;: Hellas-Stereo 5791W [Radio] ID = 89322 933x574
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hellas-Stereo 5791W, Loewe-(Opta); Deutschland:

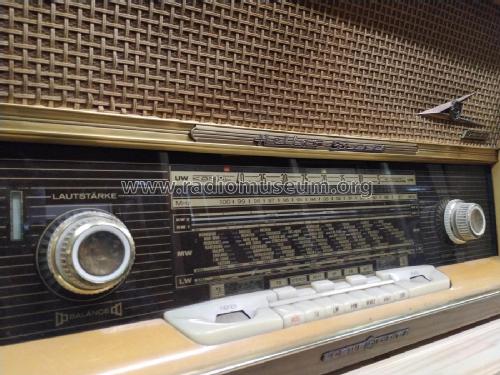

Hellas-Stereo 5791W Hauptansicht

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 ECH81 EF89 EBF89 EM84 ECL86 ECL86 ECL86 ECL86
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz
Tuned circuits 8 AM circuit(s)     14 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Hellas-Stereo 5791W - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 710 x 410 x 330 mm / 28 x 16.1 x 13 inch
Notes Dioden: 2× OA91, OA81, BA100.
Net weight (2.2 lb = 1 kg) 16.5 kg / 36 lb 5.5 oz (36.344 lb)
Price in first year of sale 549.00 DM
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1960/61
