Iris 661; Loewe-Opta; (ID = 295030) Television

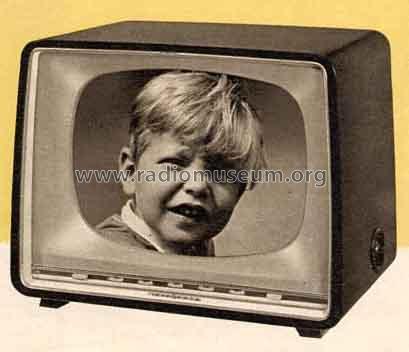

Loewe-Opta;: Iris 661 [Television] ID = 295030 409x352

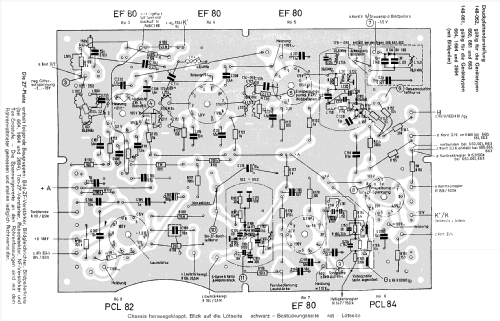

Select picture or schematic to display from thumbnails on the right and click for download.
For model Iris 661, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1959/1960 Category: Television Receiver (TV) or Monitor
Valves / Tubes 15: AW43-88
Main principle Super-Heterodyne (Super in general); ZF/IF 38900 kHz
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Iris 661 - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 510 x 425 x 350 mm / 20.1 x 16.7 x 13.8 inch
Notes Mehrpreis für eingebauten UHF-Tuner: 118,- DM.
Net weight (2.2 lb = 1 kg) 20 kg / 44 lb 0.8 oz (44.053 lb)
Price in first year of sale 698.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1959/60

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
