Juwel sensotronic 53231

Juwel sensotronic 53231; Loewe-Opta; (ID = 55414) Radio

Juwel sensotronic 53231; Loewe-Opta; (ID = 55418) Radio

Juwel sensotronic 53231; Loewe-Opta; (ID = 55419) Radio

Juwel sensotronic 53231; Loewe-Opta; (ID = 55420) Radio

Juwel sensotronic 53231; Loewe-Opta; (ID = 55421) Radio
Juwel sensotronic 53231; Loewe-Opta; (ID = 55412) Radio Juwel sensotronic 53231; Loewe-Opta; (ID = 1306802) Radio
Juwel sensotronic 53231; Loewe-Opta; (ID = 1306804) Radio Juwel sensotronic 53231; Loewe-Opta; (ID = 1306832) Radio
Use red slider bar for more.

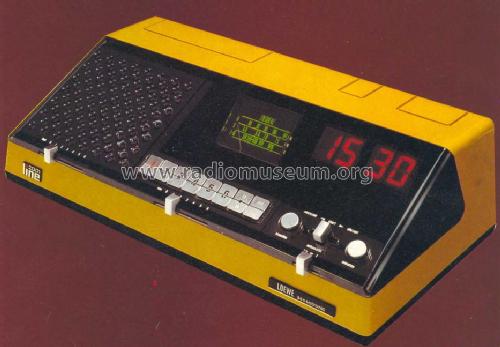

Juwel sensotronic 53231; Loewe-Opta; (ID = 55412) Radio
Loewe-Opta;: Juwel sensotronic 53231 [Radio] ID = 55412 933x648
Select picture or schematic to display from thumbnails on the right and click for download.
For model Juwel sensotronic 53231, Loewe-(Opta); Deutschland:
Aus Loewe Präsentation `75

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1974/1975 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 40:
Main principle Super-Heterodyne (Super in general)
Tuned circuits 5 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11.8 cm = 4.6 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Juwel sensotronic 53231 - Loewe-Opta; Deutschland
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 360 x 100 x 200 mm / 14.2 x 3.9 x 7.9 inch
Notes ICs: 31.
Gehäusefarben: perl, korall oder bernstein. Senderspeicherung, Sensor-Bedienung. Vollelektr. Uhr mit Batteriegangreserve bei Netzausfall. Verkauf über die Weltfunk anlässlich der Funkausstellung 1975 in den Farben: orange, weiß oder rot.
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
External source of data Erb
Source of data Katalog RFP 1974
