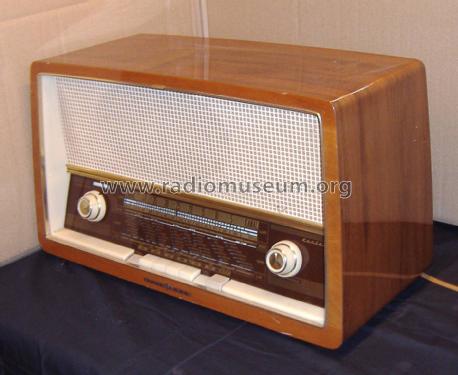

Kantate 6735W; Loewe-Opta; (ID = 24080) Radio Kantate 6735W; Loewe-Opta; (ID = 1812173) Radio
Kantate 6735W; Loewe-Opta; (ID = 622115) Radio Kantate 6735W; Loewe-Opta; (ID = 622116) Radio
Kantate 6735W; Loewe-Opta; (ID = 622117) Radio Kantate 6735W; Loewe-Opta; (ID = 622118) Radio
Kantate 6735W; Loewe-Opta; (ID = 1812164) Radio Kantate 6735W; Loewe-Opta; (ID = 1812168) Radio
Kantate 6735W; Loewe-Opta; (ID = 1812170) Radio
Use red slider bar for more.

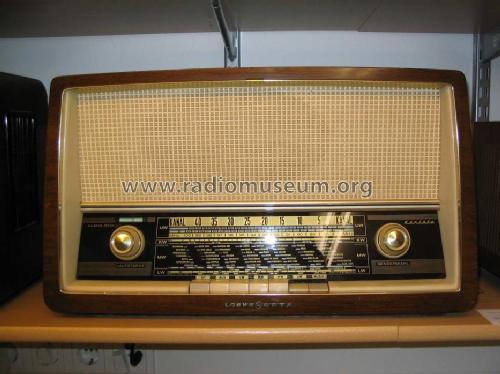

Kantate 6735W; Loewe-Opta; (ID = 24080) Radio
Loewe-Opta;: Kantate 6735W [Radio] ID = 24080 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kantate 6735W, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EBF89 ECL86 EM84
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Kantate 6735W - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 530 x 310 x 240 mm / 20.9 x 12.2 x 9.4 inch
Notes Dioden: 2× OA91.
Net weight (2.2 lb = 1 kg) 8.3 kg / 18 lb 4.5 oz (18.282 lb)
Price in first year of sale 299.00 DM
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1961/62
