Stereo Konzertbox LO6 29206

Stereo Konzertbox LO6 29206; Loewe-Opta; (ID = 1897541) Speaker-P Stereo Konzertbox LO6 29206; Loewe-Opta; (ID = 1517546) Speaker-P
Stereo Konzertbox LO6 29206; Loewe-Opta; (ID = 423414) Speaker-P Stereo Konzertbox LO6 29206; Loewe-Opta; (ID = 1517544) Speaker-P
Stereo Konzertbox LO6 29206; Loewe-Opta; (ID = 1517545) Speaker-P Stereo Konzertbox LO6 29206; Loewe-Opta; (ID = 1897542) Speaker-P
Stereo Konzertbox LO6 29206; Loewe-Opta; (ID = 1897543) Speaker-P Stereo Konzertbox LO6 29206; Loewe-Opta; (ID = 1897544) Speaker-P
Use red slider bar for more.
Stereo Konzertbox LO6 29206; Loewe-Opta; (ID = 1897541) Speaker-P

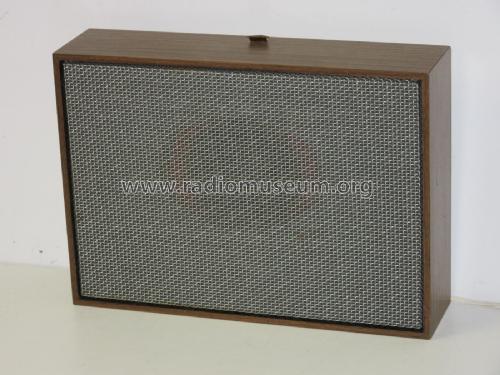

Loewe-Opta;: Stereo Konzertbox LO6 29206 [Speaker-P] ID = 1897541 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Konzertbox LO6 29206, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1971/1972 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Stereo Konzertbox LO6 29206 - Loewe-Opta; Deutschland
Material Wooden case
Dimensions (WHD) 250 x 350 x 90 mm / 9.8 x 13.8 x 3.5 inch
Notes Regallautsprecher. Akustisch gedämpfte Box, Volumen: 4,5 l; Nennbelastbarkeit: 4,5 W; Impedanz 4 Ohm.
Gehäuse: Nussbaum, natur oder Schleiflack, weiss.
Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Source of data Handbuch VDRG 1971/1972

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
