R10 line 2001 51231

R10 line 2001 51231; Loewe-Opta; (ID = 340551) Radio

R10 line 2001 51231; Loewe-Opta; (ID = 340552) Radio
R10 line 2001 51231; Loewe-Opta; (ID = 1406943) Radio R10 line 2001 51231; Loewe-Opta; (ID = 847891) Radio
R10 line 2001 51231; Loewe-Opta; (ID = 381203) Radio R10 line 2001 51231; Loewe-Opta; (ID = 1406940) Radio
R10 line 2001 51231; Loewe-Opta; (ID = 1406941) Radio R10 line 2001 51231; Loewe-Opta; (ID = 1406942) Radio
R10 line 2001 51231; Loewe-Opta; (ID = 1406944) Radio R10 line 2001 51231; Loewe-Opta; (ID = 1406945) Radio
R10 line 2001 51231; Loewe-Opta; (ID = 1964801) Radio
Use red slider bar for more.

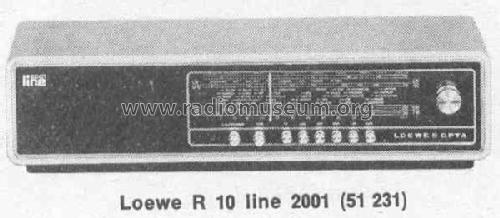

R10 line 2001 51231; Loewe-Opta; (ID = 1406943) Radio
Loewe-Opta;: R10 line 2001 51231 [Radio] ID = 1406943 933x622
Select picture or schematic to display from thumbnails on the right and click for download.
For model R10 line 2001 51231, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1972–1974 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 4:
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 5 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: R10 line 2001 51231 - Loewe-Opta; Deutschland
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 580 x 142 x 145 mm / 22.8 x 5.6 x 5.7 inch
Notes ICs: 3.
Gehäuse in Schleiflack, weiss oder rot.
Technische Daten wie R11 line 2001.
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Collectors' prices
External source of data Erb
Source of data Handbuch VDRG 1972/1973


All listed radios etc. from Loewe-(Opta); Deutschland
Here you find 1566 models, 1294 with images and 1146 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
