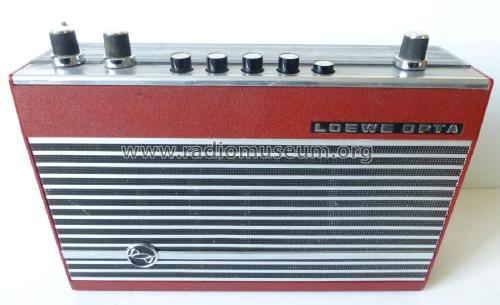

Loewe-Opta;: T49 92349 [Radio] ID = 19598 612x466
Select picture or schematic to display from thumbnails on the right and click for download.
For model T49 92349, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1968/1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.3 W (unknown quality)
from Radiomuseum.org Model: T49 92349 - Loewe-Opta; Deutschland
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (usable also without mains)
Dimensions (WHD) 260 x 175 x 75 mm / 10.2 x 6.9 x 3 inch
Notes Transistoren: 3× AF121, AF124, AF125, BC148C, BC158B, AC187K, AC188K.
Betrieb mit zusätzlichem Netzteil möglich, dann Ausgangsleistung = 2 W.
Net weight (2.2 lb = 1 kg) 1.9 kg / 4 lb 3 oz (4.185 lb)
Source of data Handbuch VDRG 1968/1969 / Radiokatalog Band 1, Ernst Erb
