Luna-Phono-Stereo 32073W

Luna-Phono-Stereo 32073W; Loewe-Opta; (ID = 332512) Radio

Luna-Phono-Stereo 32073W; Loewe-Opta; (ID = 332513) Radio

Luna-Phono-Stereo 32073W; Loewe-Opta; (ID = 332514) Radio
Luna-Phono-Stereo 32073W; Loewe-Opta; (ID = 102568) Radio Luna-Phono-Stereo 32073W; Loewe-Opta; (ID = 102569) Radio
Luna-Phono-Stereo 32073W; Loewe-Opta; (ID = 102570) Radio Luna-Phono-Stereo 32073W; Loewe-Opta; (ID = 53513) Radio
Luna-Phono-Stereo 32073W; Loewe-Opta; (ID = 53514) Radio Luna-Phono-Stereo 32073W; Loewe-Opta; (ID = 751595) Radio
Luna-Phono-Stereo 32073W; Loewe-Opta; (ID = 751596) Radio Luna-Phono-Stereo 32073W; Loewe-Opta; (ID = 751597) Radio
Luna-Phono-Stereo 32073W; Loewe-Opta; (ID = 751598) Radio Luna-Phono-Stereo 32073W; Loewe-Opta; (ID = 751599) Radio
Use red slider bar for more.

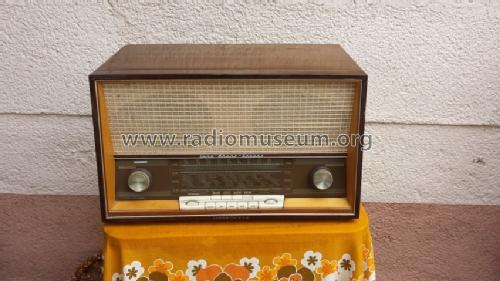

Luna-Phono-Stereo 32073W; Loewe-Opta; (ID = 102568) Radio
Loewe-Opta;: Luna-Phono-Stereo 32073W [Radio] ID = 102568 674x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Luna-Phono-Stereo 32073W, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1962/1963 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EBF89 ECL86 EM84 ECL86
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Luna-Phono-Stereo 32073W - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 570 x 340 x 320 mm / 22.4 x 13.4 x 12.6 inch

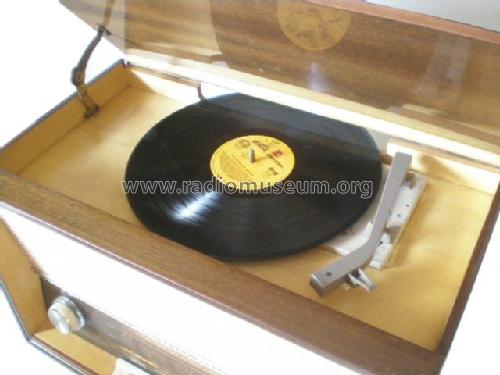

Notes Phono-Chassis = Perpetuum-Ebner PE31. Stereo-NF-Verstärker mit 2 Endstufen je 4 W.
Net weight (2.2 lb = 1 kg) 13.7 kg / 30 lb 2.8 oz (30.176 lb)
Price in first year of sale 569.00 DM
External source of data Erb
Source of data Handbuch VDRG 1962/1963
