Luna-Phono-Stereo 6766W

Loewe-(Opta); Deutschland

  • Year
  • 1961/1962
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 23999
    • alternative name: Löwe Radio

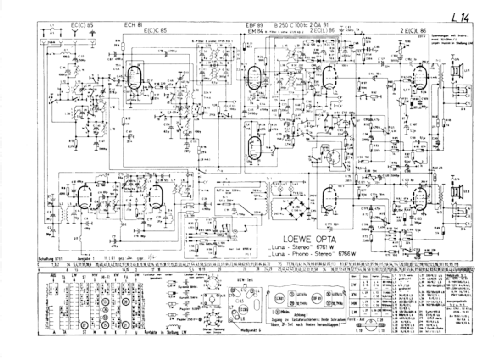

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Luna-Phono-Stereo 6766W - Loewe-Opta; Deutschland
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 570 x 350 x 330 mm / 22.4 x 13.8 x 13 inch
  • Notes
  • Stereo-NF-Verstärker mit 2 Endstufen je 4 W, Parallelbetrieb bei Mono. Phono-Chassis = Perpetuum-Ebner PE4230.
  • Net weight (2.2 lb = 1 kg)
  • 13.7 kg / 30 lb 2.8 oz (30.176 lb)
  • Price in first year of sale
  • 499.00 DM
  • External source of data
  • Erb
