Malmö-Stereo 32252T/W

Loewe-(Opta); Deutschland

  • Year
  • 1962/1963
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 24519
    • alternative name: Löwe Radio

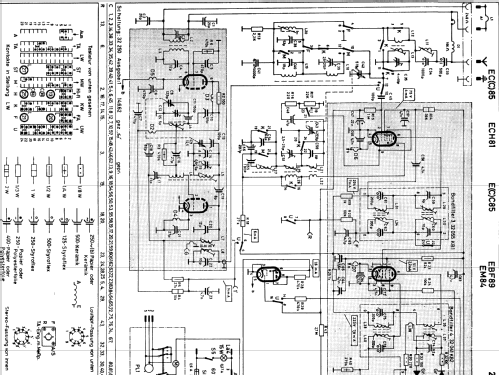

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Malmö-Stereo 32252T/W - Loewe-Opta; Deutschland
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 1000 x 750 x 380 mm / 39.4 x 29.5 x 15 inch
  • Notes
  • Rundfunk-Chassis = 32070W;
    Phono-Chassis = Perpetuum-Ebner PE66.
  • Net weight (2.2 lb = 1 kg)
  • 32 kg / 70 lb 7.8 oz (70.485 lb)
  • Price in first year of sale
  • 768.00 DM
  • External source of data
  • Erb
