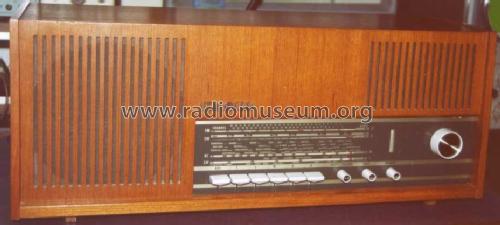

Moderna 62 032

Loewe-(Opta); Deutschland

  • Year
  • 1965/1966
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 26089
    • alternative name: Löwe Radio

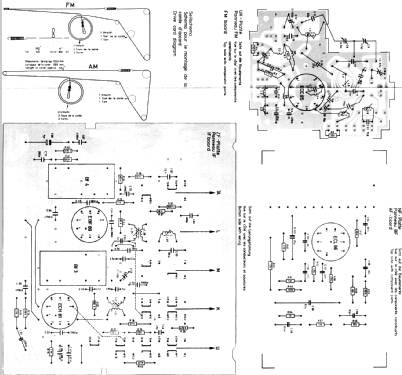

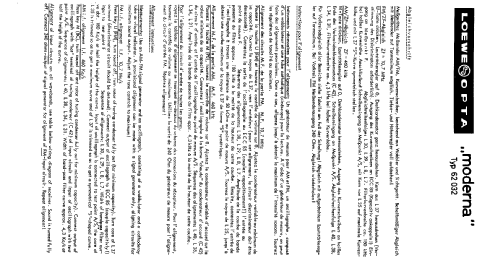

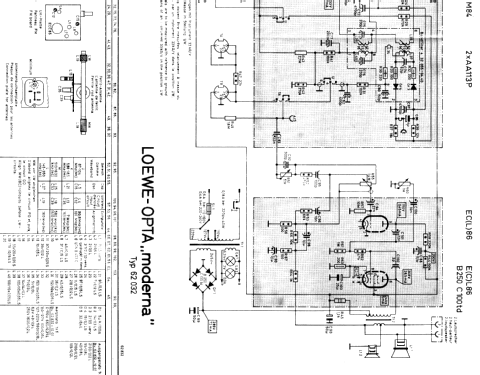

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 3 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Moderna 62 032 - Loewe-Opta; Deutschland
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 560 x 225 x 190 mm / 22 x 8.9 x 7.5 inch
  • Notes
  • Dioden: 2× AA113.
  • Net weight (2.2 lb = 1 kg)
  • 5.7 kg / 12 lb 8.9 oz (12.555 lb)
  • External source of data
  • erb
