MS60 48600

MS60 48600; Loewe-Opta; (ID = 244999) Ampl/Mixer

MS60 48600; Loewe-Opta; (ID = 245000) Ampl/Mixer

MS60 48600; Loewe-Opta; (ID = 765787) Ampl/Mixer
MS60 48600; Loewe-Opta; (ID = 381253) Ampl/Mixer
Use red slider bar for more.

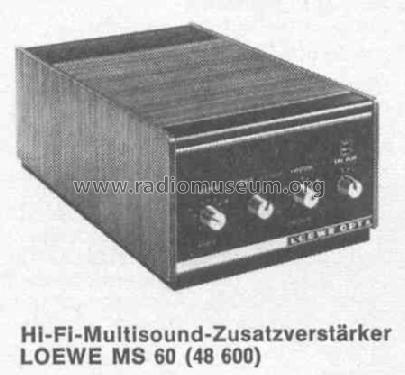

MS60 48600; Loewe-Opta; (ID = 381253) Ampl/Mixer
Loewe-Opta;: MS60 48600 [Ampl/Mixer] ID = 381253 450x416
Select picture or schematic to display from thumbnails on the right and click for download.
For model MS60 48600, Loewe-(Opta); Deutschland:
Großer Katalog Gebr.Weiler 1973/74

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1972–1974 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 18:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 117; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: MS60 48600 - Loewe-Opta; Deutschland
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 210 x 130 x 320 mm / 8.3 x 5.1 x 12.6 inch
Notes Zusatzverstärker mit Matrix zur Versorgung von zusätzlichen LS-Boxen aus einer herkömmlichen Stereo-Anlage mit Quadrofonie-Signalen, umschaltbar zur Stereo-Versorgung in einem zweiten Raum. Ausgangsleistung 2 × 20 W Sinus.
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
External source of data Erb
Source of data Handbuch VDRG 1972/1973
