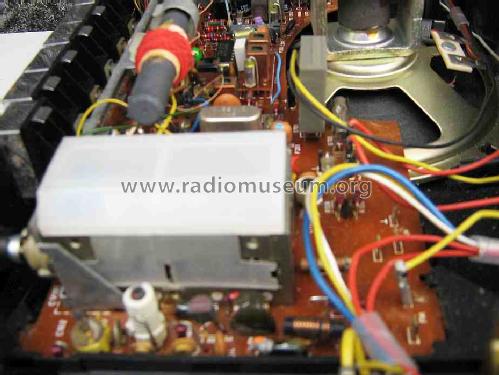

Netzautomatik T96 53214; Loewe-Opta; (ID = 1173307) Radio Netzautomatik T96 53214; Loewe-Opta; (ID = 1173308) Radio
Netzautomatik T96 53214; Loewe-Opta; (ID = 1173309) Radio Netzautomatik T96 53214; Loewe-Opta; (ID = 1173310) Radio
Netzautomatik T96 53214; Loewe-Opta; (ID = 1173311) Radio Netzautomatik T96 53214; Loewe-Opta; (ID = 1173312) Radio
Use red slider bar for more.
Netzautomatik T96 53214; Loewe-Opta; (ID = 1739256) Radio
Loewe-Opta;: Netzautomatik T96 53214 [Radio] ID = 1739256 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model Netzautomatik T96 53214, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1973/1974 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 4: BF314 BF194 BF194 TBA570 TBA480 TBA641 AC187 BZX79 Si-Br-Gl
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 5 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220; (6 × 1,5) Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Netzautomatik T96 53214 - Loewe-Opta; Deutschland
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 310 x 180 x 80 mm / 12.2 x 7.1 x 3.1 inch
Notes UKW: 87,5 - 104 MHz
KW: 5850 - 16000 kHz
MW: 513 - 1605 kHz
LW: 145 - 350 kHz

NF-Ausgangsleistung bei Netzbetrieb = 4 W.
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
External source of data Erb
Source of data Katalog RFP 1973
Mentioned in -- Original-techn. papers.
