Nordland-Stereo TR 82281

Nordland-Stereo TR 82281; Loewe-Opta; (ID = 334686) Radio

Nordland-Stereo TR 82281; Loewe-Opta; (ID = 334687) Radio

Nordland-Stereo TR 82281; Loewe-Opta; (ID = 334688) Radio

Nordland-Stereo TR 82281; Loewe-Opta; (ID = 334689) Radio

Nordland-Stereo TR 82281; Loewe-Opta; (ID = 1361913) Radio
Nordland-Stereo TR 82281; Loewe-Opta; (ID = 1240583) Radio Nordland-Stereo TR 82281; Loewe-Opta; (ID = 443095) Radio
Nordland-Stereo TR 82281; Loewe-Opta; (ID = 1238713) Radio Nordland-Stereo TR 82281; Loewe-Opta; (ID = 1238715) Radio
Nordland-Stereo TR 82281; Loewe-Opta; (ID = 1239682) Radio Nordland-Stereo TR 82281; Loewe-Opta; (ID = 1239683) Radio
Nordland-Stereo TR 82281; Loewe-Opta; (ID = 1239684) Radio Nordland-Stereo TR 82281; Loewe-Opta; (ID = 1239685) Radio
Use red slider bar for more.
Nordland-Stereo TR 82281; Loewe-Opta; (ID = 1240583) Radio
Loewe-Opta;: Nordland-Stereo TR 82281 [Radio] ID = 1240583 933x621
Select picture or schematic to display from thumbnails on the right and click for download.
For model Nordland-Stereo TR 82281, Loewe-(Opta); Deutschland:

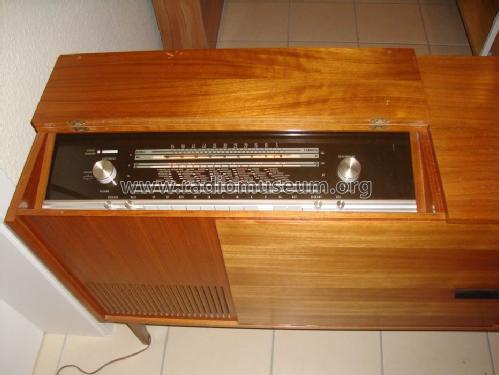

Nordland-Stereo TR 82281 Ansicht von vorne

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1966–1968 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EF89 EAF801 EMM803
Semiconductors (the count is only for transistors) 17: BC108 AC151 AF126 AC127 AC132 AD130 BC107
Main principle Superheterodyne (common)
Tuned circuits 8 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Nordland-Stereo TR 82281 - Loewe-Opta; Deutschland
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1250 x 730 x 360 mm / 49.2 x 28.7 x 14.2 inch
Notes Transistoren nur 1× pro Typ gelistet.
Rundfunk-Chassis = 62881, Stereo-Decoder eingebaut, Stereo-NF-Verstärker mit 2 Endstufen je 10 W;
Phono-Chassis = Perpetuum-Ebner PE66.
Net weight (2.2 lb = 1 kg) 40 kg / 88 lb 1.7 oz (88.106 lb)
External source of data erb
Source of data Handbuch VDRG 1966/1967


All listed radios etc. from Loewe-(Opta); Deutschland
Here you find 1586 models, 1321 with images and 1155 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
