Opta 146GW VCL11, magn.LS

Opta 146GW ; Loewe-Opta; (ID = 1538734) Radio

Opta 146GW ; Loewe-Opta; (ID = 2398162) Radio

Opta 146GW ; Loewe-Opta; (ID = 2605521) Radio
Opta 146GW ; Loewe-Opta; (ID = 1105139) Radio Opta 146GW ; Loewe-Opta; (ID = 1105140) Radio
Opta 146GW ; Loewe-Opta; (ID = 1105141) Radio Opta 146GW ; Loewe-Opta; (ID = 1154613) Radio

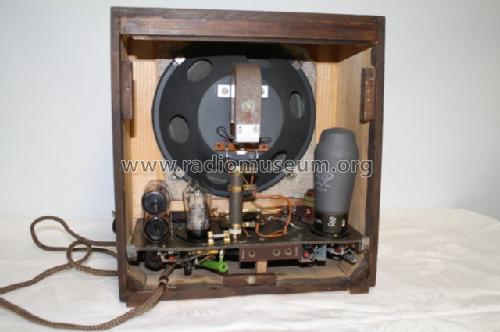

Opta 146GW ; Loewe-Opta; (ID = 1154614) Radio Opta 146GW ; Loewe-Opta; (ID = 1154615) Radio
Use red slider bar for more.

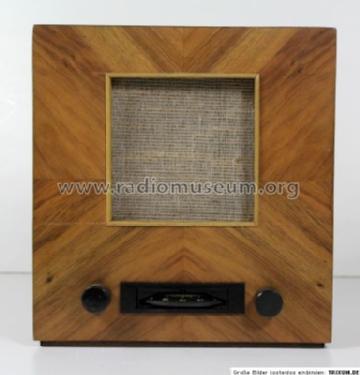

Opta 146GW ; Loewe-Opta; (ID = 1105139) Radio
Loewe-Opta;: Opta 146GW [Radio] ID = 1105139 384x400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Opta 146GW VCL11, magn.LS, Loewe-(Opta); Deutschland:
eBay Art.Nr.: 150701247483

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1946/1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2: VCL11 VY2
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931).
Power out
from Radiomuseum.org Model: Opta 146GW [VCL11, magn.LS] - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 260 x 255 x 120 mm / 10.2 x 10 x 4.7 inch
Notes

Version wie Kleinempfänger 1946 mit VCL11 und magnetischem Lautsprecher.
In der verbesserten Version Opta 146 Dyn GW wird die neue VEL11 eingesetzt.

Model page created by Anton Schefzik. See "Data change" for further contributors.
