Opta 240GW

Opta 240GW; Loewe-Opta; (ID = 1085639) Radio

Opta 240GW; Loewe-Opta; (ID = 8396) Radio
Opta 240GW; Loewe-Opta; (ID = 707930) Radio Opta 240GW; Loewe-Opta; (ID = 20225) Radio

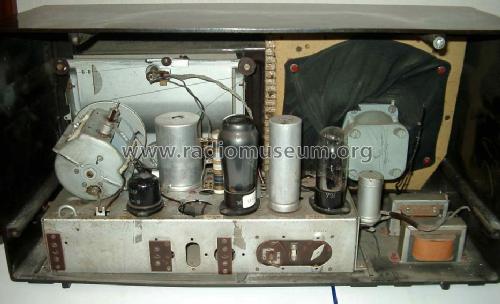

Opta 240GW; Loewe-Opta; (ID = 20226) Radio Opta 240GW; Loewe-Opta; (ID = 20227) Radio
Opta 240GW; Loewe-Opta; (ID = 706976) Radio
Use red slider bar for more.
Opta 240GW; Loewe-Opta; (ID = 707930) Radio
Loewe-Opta;: Opta 240GW [Radio] ID = 707930 700x477
Select picture or schematic to display from thumbnails on the right and click for download.
For model Opta 240GW, Loewe-(Opta); Deutschland:
Bild zum gleich aussehenden Modell automatisch kopiert statt wie bisher verknüpft (05.Jan.2010 EE).

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1939–1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: UBF11 UCL11 50NG U2410
Main principle TRF with diode detector; 2 Special; 1 AF stage(s); something special ? Please give information (notes)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110; 127; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Opta 240GW - Loewe-Opta; Deutschland
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 560 x 295 x 225 mm / 22 x 11.6 x 8.9 inch
Net weight (2.2 lb = 1 kg) 9.5 kg / 20 lb 14.8 oz (20.925 lb)
Price in first year of sale 169.00 RM
Source of data Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
