Optacord 416DIA

Optacord 416DIA; Loewe-Opta; (ID = 31509) R-Player

Optacord 416DIA; Loewe-Opta; (ID = 31510) R-Player

Optacord 416DIA; Loewe-Opta; (ID = 31511) R-Player

Optacord 416DIA; Loewe-Opta; (ID = 329022) R-Player

Optacord 416DIA; Loewe-Opta; (ID = 329023) R-Player

Optacord 416DIA; Loewe-Opta; (ID = 329024) R-Player
Optacord 416DIA; Loewe-Opta; (ID = 31512) R-Player Optacord 416DIA; Loewe-Opta; (ID = 204307) R-Player
Optacord 416DIA; Loewe-Opta; (ID = 1010337) R-Player
Use red slider bar for more.
Optacord 416DIA; Loewe-Opta; (ID = 31512) R-Player

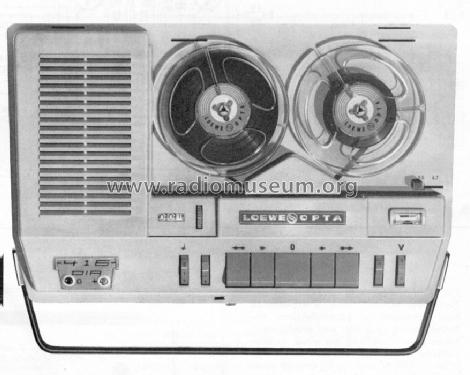

Loewe-Opta;: Optacord 416DIA [R-Player] ID = 31512 878x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Optacord 416DIA, Loewe-(Opta); Deutschland:
Bild aus dem Loewe Opta Kurier Heft 22 April 1965

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1965–1967 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 11: AC161 AC162 AC162 AC162 AC162 AC162 AC162 AC162 AC153 AC153 AC153 AC153 OA85
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Line / Batteries (any type) / 110; 220 / 5 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Optacord 416DIA - Loewe-Opta; Deutschland
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 385 x 115 x 235 mm / 15.2 x 4.5 x 9.3 inch
Notes Technische Daten wie Optacord 416, jedoch mit eingebauter automatischer Dia-Steuerung; zusätzlich zwei Drucktasten (Impuls-Aufnahme, Impuls-Löschen) und Impulsteil mit 4 Transistoren (3× AC162, AC153).
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
External source of data erb
Source of data Handbuch VDRG 1965/1966
