Optacord 445 51701

Optacord 445 51701; Loewe-Opta; (ID = 616510) R-Player

Optacord 445 51701; Loewe-Opta; (ID = 616511) R-Player

Optacord 445 51701; Loewe-Opta; (ID = 616512) R-Player

Optacord 445 51701; Loewe-Opta; (ID = 616513) R-Player

Optacord 445 51701; Loewe-Opta; (ID = 616514) R-Player

Optacord 445 51701; Loewe-Opta; (ID = 616515) R-Player

Optacord 445 51701; Loewe-Opta; (ID = 616516) R-Player
Optacord 445 51701; Loewe-Opta; (ID = 563788) R-Player Optacord 445 51701; Loewe-Opta; (ID = 563773) R-Player
Optacord 445 51701; Loewe-Opta; (ID = 563793) R-Player Optacord 445 51701; Loewe-Opta; (ID = 423611) R-Player
Optacord 445 51701; Loewe-Opta; (ID = 563777) R-Player Optacord 445 51701; Loewe-Opta; (ID = 563781) R-Player
Optacord 445 51701; Loewe-Opta; (ID = 563791) R-Player Optacord 445 51701; Loewe-Opta; (ID = 563792) R-Player
Use red slider bar for more.
Optacord 445 51701; Loewe-Opta; (ID = 563788) R-Player
Loewe-Opta;: Optacord 445 51701 [R-Player] ID = 563788 810x700

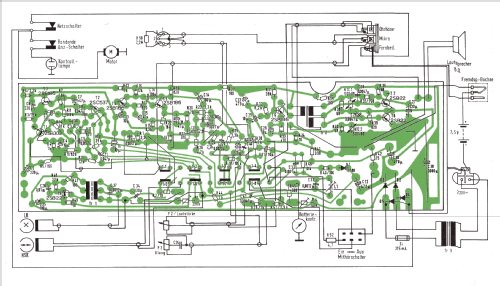

Select picture or schematic to display from thumbnails on the right and click for download.
For model Optacord 445 51701, Loewe-(Opta); Deutschland:
Sammlung Abdeckblech im Bedienfeld fehlt

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1971/1972 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 11:
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220 / 5×1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out 0.8 W (unknown quality)
from Radiomuseum.org Model: Optacord 445 51701 - Loewe-Opta; Deutschland
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 140 x 65 x 265 mm / 5.5 x 2.6 x 10.4 inch
Notes Übertragungsbereich: 80-10000 Hz.
Net weight (2.2 lb = 1 kg) 2.3 kg / 5 lb 1.1 oz (5.066 lb)
External source of data Erb
Source of data Handbuch VDRG 1971/1972


All listed radios etc. from Loewe-(Opta); Deutschland
Here you find 1581 models, 1306 with images and 1154 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
