For model Optacord 448 51702, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1972–1975 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 11: 2SB303 2SB186 2SB186 2SB186 2SB186 2SB22 2SB22 2SC537 2SB22 2SB185 2N3643 1S188
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220 / 5x1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Optacord 448 51702 - Loewe-Opta; Deutschland
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 136 x 67 x 265 mm / 5.4 x 2.6 x 10.4 inch
Notes

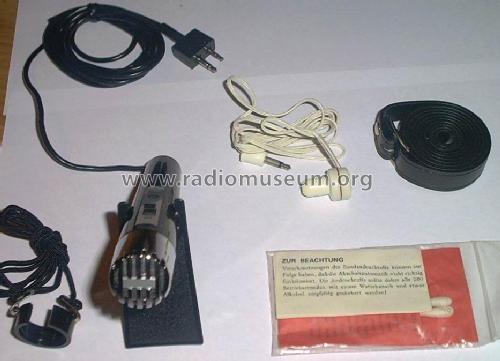

Loewe Opta Optacord 448, Aussteuerungsautomatik, Instrument zur Batteriekontrolle, Trageriemen, Ledertasche mit Fach für Zubehör.

Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Price in first year of sale 178.00 DM
External source of data Erb
Source of data Handbuch VDRG 1972/1973

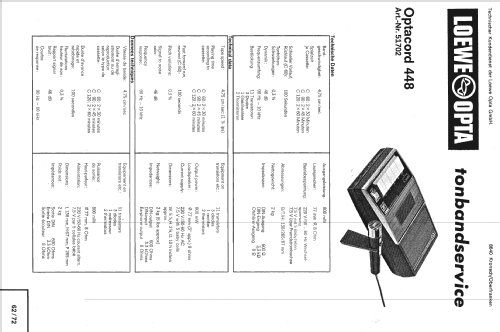

Literature/Schematics (1) -- Original-techn. papers.
