Optacord OC 6020

Optacord OC 6020; Loewe-Opta; (ID = 1698232) R-Player Optacord OC 6020; Loewe-Opta; (ID = 1698233) R-Player
Optacord OC 6020; Loewe-Opta; (ID = 1698234) R-Player Optacord OC 6020; Loewe-Opta; (ID = 1698235) R-Player
Optacord OC 6020; Loewe-Opta; (ID = 1698236) R-Player Optacord OC 6020; Loewe-Opta; (ID = 1698238) R-Player
Optacord OC 6020; Loewe-Opta; (ID = 1698240) R-Player Optacord OC 6020; Loewe-Opta; (ID = 604002) R-Player
Use red slider bar for more.
Optacord OC 6020; Loewe-Opta; (ID = 1698232) R-Player
Loewe-Opta;: Optacord OC 6020 [R-Player] ID = 1698232 933x479
Select picture or schematic to display from thumbnails on the right and click for download.
For model Optacord OC 6020, Loewe-(Opta); Deutschland:
Ebay auction by user he36 311036146176

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1981/1982 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Video-Taperecorder/-Player; Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Optacord OC 6020 - Loewe-Opta; Deutschland
Material Various materials
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 540 x 152 x 365 mm / 21.3 x 6 x 14.4 inch
Notes Loewe Optacord OC 6020;
System 2000 PAL, Toplader, Erzeugnis Philips, 2 x 4h, 3 MHz Bandbreite, bis zu 5 Zeilen Drop Out Kompensation, Audio 80-10.000 Hz, eingeb. UHF Modulator Kanal 31 - 43, Timer, VHF/UHF Tuner nach CCIR B/G, 75 W Stromaufnahme.
Net weight (2.2 lb = 1 kg) 17.5 kg / 38 lb 8.7 oz (38.546 lb)

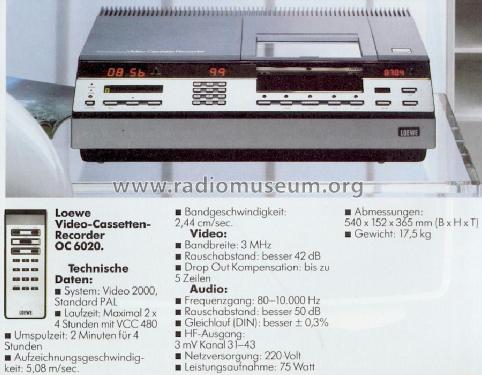

Mentioned in -- Original prospect or advert (Loewe 1981/82 (Ger) TV,Video,HiFi.)

Model page created by a member from A. See "Data change" for further contributors.
