Oszillographen-Meßverstärker V 38

Oszillographen-Meßverstärker V 38; Loewe-Opta; (ID = 409615) Equipment
Use red slider bar for more.
Oszillographen-Meßverstärker V 38; Loewe-Opta; (ID = 409615) Equipment

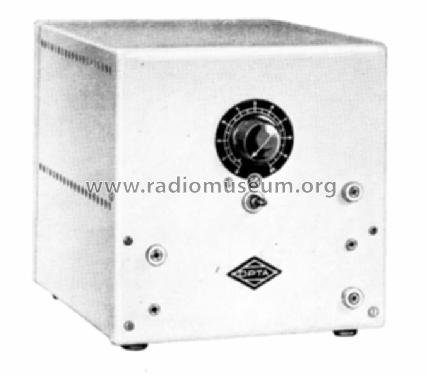

Loewe-Opta;: Oszillographen-Meßverstärker V 38 [Equipment] ID = 409615 678x594
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oszillographen-Meßverstärker V 38, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1939 Category: Service- or Lab Equipment
Valves / Tubes 4: EF14 EL11 EL11 EZ12
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Oszillographen-Meßverstärker V 38 - Loewe-Opta; Deutschland
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 210 x 180 x 230 mm / 8.3 x 7.1 x 9.1 inch
Notes Verstärkungsfaktor 500, Ausgangsspannung 150 V, lineare Verstärkung von 3 Hz bis 2,5 MHz.
Net weight (2.2 lb = 1 kg) 7.6 kg / 16 lb 11.8 oz (16.74 lb)
Price in first year of sale 560.00 RM
Source of data -- Original prospect or advert
Mentioned in original Katalog der Firma Löwe Radio AG vom Oktober 1939

Model page created by a member from D. See "Data change" for further contributors.
