P701 53301

P701 53301; Loewe-Opta; (ID = 328590) Television

P701 53301; Loewe-Opta; (ID = 328591) Television

P701 53301; Loewe-Opta; (ID = 328592) Television

P701 53301; Loewe-Opta; (ID = 328593) Television

P701 53301; Loewe-Opta; (ID = 328594) Television

P701 53301; Loewe-Opta; (ID = 626132) Television

P701 53301; Loewe-Opta; (ID = 626133) Television
P701 53301; Loewe-Opta; (ID = 236372) Television P701 53301; Loewe-Opta; (ID = 236371) Television
P701 53301; Loewe-Opta; (ID = 236373) Television P701 53301; Loewe-Opta; (ID = 236369) Television
P701 53301; Loewe-Opta; (ID = 381183) Television P701 53301; Loewe-Opta; (ID = 1261508) Television
P701 53301; Loewe-Opta; (ID = 1755644) Television P701 53301; Loewe-Opta; (ID = 1755645) Television
P701 53301; Loewe-Opta; (ID = 1755688) Television
Use red slider bar for more.

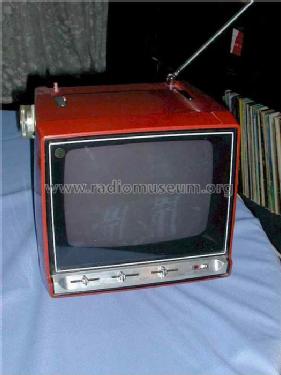

P701 53301; Loewe-Opta; (ID = 236372) Television
Loewe-Opta;: P701 53301 [Television] ID = 236372 525x700

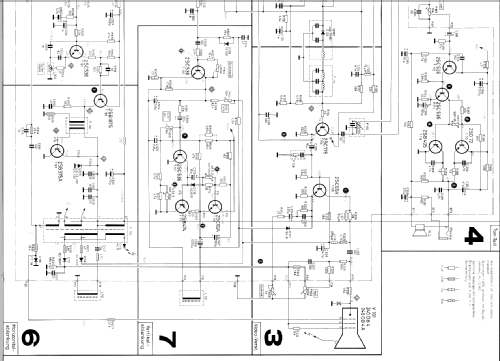

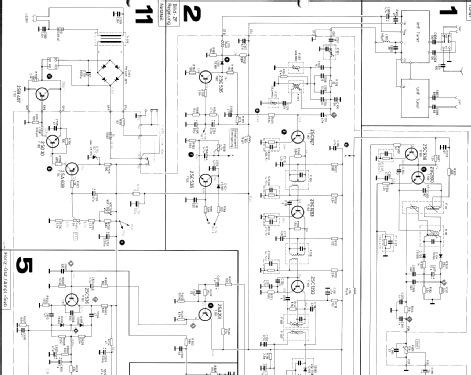

Select picture or schematic to display from thumbnails on the right and click for download.
For model P701 53301, Loewe-(Opta); Deutschland:
Mit freundlicher Genehmigung durch eBay-Verkäufer gjb001 (Auktion Nr. 6612599810)

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1973/1974 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: 240DB4
Semiconductors (the count is only for transistors) 29:
Main principle Super-Heterodyne (Super in general)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out
from Radiomuseum.org Model: P701 53301 - Loewe-Opta; Deutschland
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 285 x 255 x 290 mm / 11.2 x 10 x 11.4 inch
Notes

VHF/UHF. Externe Stromversorgung 12-18 V möglich.

See also similar model Sanyo 10-T150H.

Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)
Collectors' prices
Source of data Handbuch VDRG 1973/1974

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
