Paloma 12273 (Ch=12863)

Paloma 12273 ; Loewe-Opta; (ID = 336898) Radio

Paloma 12273 ; Loewe-Opta; (ID = 336899) Radio

Paloma 12273 ; Loewe-Opta; (ID = 548172) Radio

Paloma 12273 ; Loewe-Opta; (ID = 548173) Radio

Paloma 12273 ; Loewe-Opta; (ID = 548175) Radio

Paloma 12273 ; Loewe-Opta; (ID = 548174) Radio

Paloma 12273 ; Loewe-Opta; (ID = 548176) Radio

Paloma 12273 ; Loewe-Opta; (ID = 548177) Radio
Paloma 12273 ; Loewe-Opta; (ID = 441620) Radio
Use red slider bar for more.

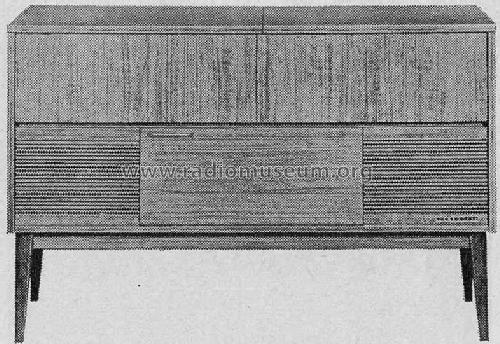

Paloma 12273 ; Loewe-Opta; (ID = 441620) Radio
Loewe-Opta;: Paloma 12273 [Radio] ID = 441620 786x542
Select picture or schematic to display from thumbnails on the right and click for download.
For model Paloma 12273 (Ch=12863), Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1968/1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 21:
Main principle Superheterodyne (common); ZF/IF 473/10700 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 117; 156; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Paloma 12273 - Loewe-Opta; Deutschland
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1200 x 740 x 370 mm / 47.2 x 29.1 x 14.6 inch
Notes Rundfunk-Chassis = 12863; Vollstereo, NF-Verstärker mit zwei Endstufen je 6 (Musik);
Phono-Chassis = Dual 1010 FT516 mit Kristallsystem CDS630.
Net weight (2.2 lb = 1 kg) 40 kg / 88 lb 1.7 oz (88.106 lb)
External source of data erb
Source of data Handbuch VDRG 1968/1969
