Patrizier 43 272

Patrizier 43 272; Loewe-Opta; (ID = 326332) TV Radio

Patrizier 43 272; Loewe-Opta; (ID = 326333) TV Radio
Patrizier 43 272; Loewe-Opta; (ID = 2564038) TV Radio Patrizier 43 272; Loewe-Opta; (ID = 2564041) TV Radio
Patrizier 43 272; Loewe-Opta; (ID = 2564040) TV Radio Patrizier 43 272; Loewe-Opta; (ID = 2564039) TV Radio
Patrizier 43 272; Loewe-Opta; (ID = 2564308) TV Radio Patrizier 43 272; Loewe-Opta; (ID = 2564309) TV Radio
Use red slider bar for more.
Patrizier 43 272; Loewe-Opta; (ID = 2564038) TV Radio
Loewe-Opta;: Patrizier 43 272 [TV Radio] ID = 2564038 1000x614
Select picture or schematic to display from thumbnails on the right and click for download.
For model Patrizier 43 272, Loewe-(Opta); Deutschland:
Florian Henkel

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1963/1964 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes ECC85 ECH81 EBF89 ECL86 EM84 ECL86 ECL86 ECL86
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Patrizier 43 272 - Loewe-Opta; Deutschland
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1700 x 960 x 480 mm / 66.9 x 37.8 x 18.9 inch

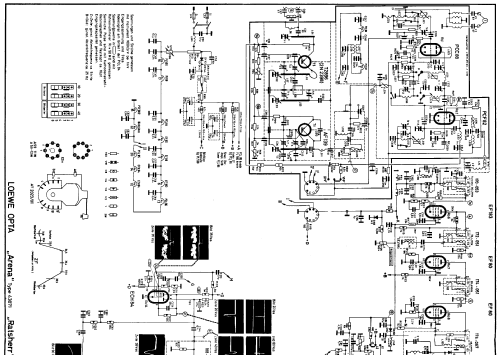

Notes Fernseh-Chassis = Arena 43071;
Rundfunk-Chassis = 42892;
Phono-Chassis = Dual 1008.
Net weight (2.2 lb = 1 kg) 113 kg / 248 lb 14.4 oz (248.899 lb)
Price in first year of sale 3'198.00 DM
External source of data Erb
Source of data Handbuch VDRG 1963/1964
