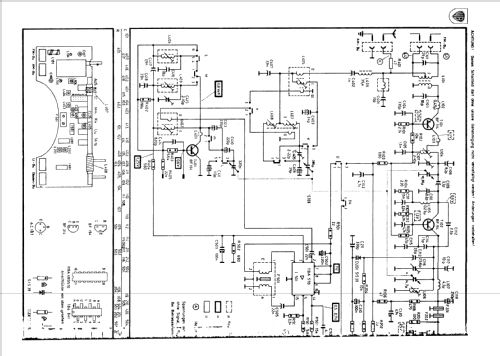

R112 53222; Loewe-Opta; (ID = 214773) Radio

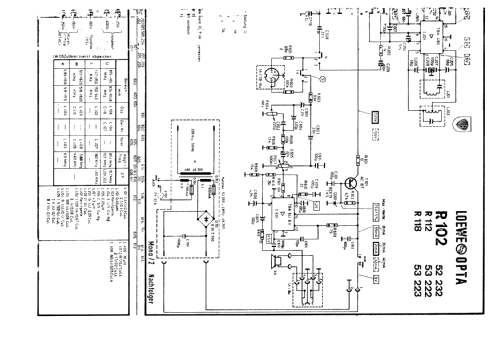

R112 53222; Loewe-Opta; (ID = 214774) Radio
R112 53222; Loewe-Opta; (ID = 145988) Radio R112 53222; Loewe-Opta; (ID = 145989) Radio
R112 53222; Loewe-Opta; (ID = 145990) Radio R112 53222; Loewe-Opta; (ID = 1048059) Radio
R112 53222; Loewe-Opta; (ID = 1851293) Radio R112 53222; Loewe-Opta; (ID = 1851294) Radio

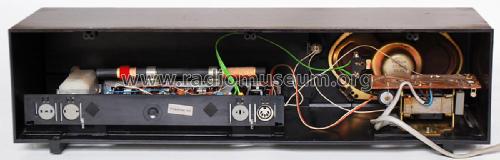

R112 53222; Loewe-Opta; (ID = 1851296) Radio R112 53222; Loewe-Opta; (ID = 1851298) Radio
R112 53222; Loewe-Opta; (ID = 1851300) Radio R112 53222; Loewe-Opta; (ID = 1851301) Radio
Use red slider bar for more.
R112 53222; Loewe-Opta; (ID = 145988) Radio
Loewe-Opta;: R112 53222 [Radio] ID = 145988 600x338
Select picture or schematic to display from thumbnails on the right and click for download.
For model R112 53222, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1973/1974 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 4: BF314 BF194 BF194 TBA570 TBA480 TBA641 AC187 BZX79 Si-Br-Gl
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 5 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: R112 53222 - Loewe-Opta; Deutschland
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 470 x 125 x 140 mm / 18.5 x 4.9 x 5.5 inch
Notes UKW: 87,5 - 104 MHz
KW: 5850 - 15600 kHz
MW: 513 - 1620 kHz
LW: 147 - 350 kHz

ZF-Keramikfilter für AM und FM.
Gehäuse: Nussbaumdekor oder Schleiflack, weiss oder rot.
Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)
External source of data Erb
Source of data Katalog RFP 1973
Mentioned in -- Original-techn. papers.
