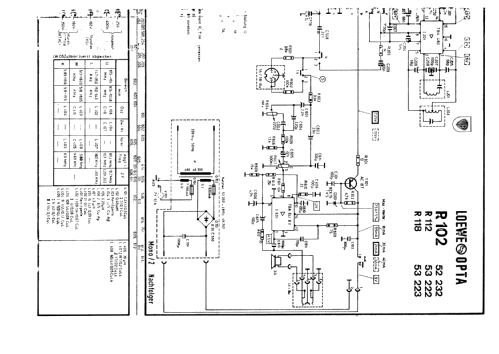

R118 53223; Loewe-Opta; (ID = 214776) Radio
R118 53223; Loewe-Opta; (ID = 225094) Radio R118 53223; Loewe-Opta; (ID = 225095) Radio
R118 53223; Loewe-Opta; (ID = 2481007) Radio
Use red slider bar for more.

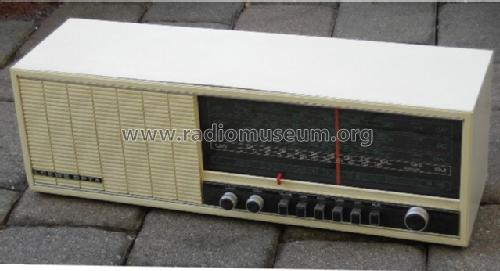

R118 53223; Loewe-Opta; (ID = 225094) Radio
Loewe-Opta;: R118 53223 [Radio] ID = 225094 639x347
Select picture or schematic to display from thumbnails on the right and click for download.
For model R118 53223, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1973/1974 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 4: BF314 BF194 BF194 TBA570 TBA480 TBA641 AC187 BZX79 Si-Br-Gl
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 5 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: R118 53223 - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 510 x 170 x 150 mm / 20.1 x 6.7 x 5.9 inch
Notes UKW: 87,5 - 104 MHz
KW: 5850 - 15600 kHz
MW: 513 - 1620 kHz
LW: 147 - 350 kHz

ZF-Keramikfilter für AM und FM.
Gehäuse: Nussbaum oder Schleiflack weiss.
Net weight (2.2 lb = 1 kg) 3.1 kg / 6 lb 13.3 oz (6.828 lb)
External source of data Erb
Source of data Katalog RFP 1973
Mentioned in -- Original-techn. papers.
