For model RK544D (RK544DW), Loewe-(Opta); Deutschland:
Aukro Verkäufer Antik_Technik, CZ

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1932 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2: 3NFW 14NG or RGN1064
Main principle TRF with regeneration; 2 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: RK544D - Loewe-Opta; Deutschland
Material Wooden case

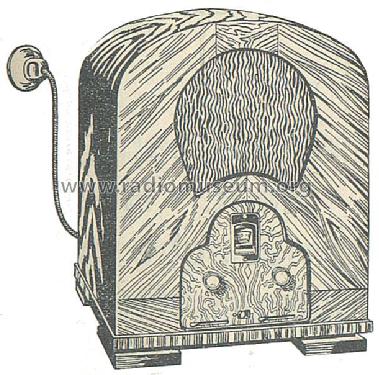

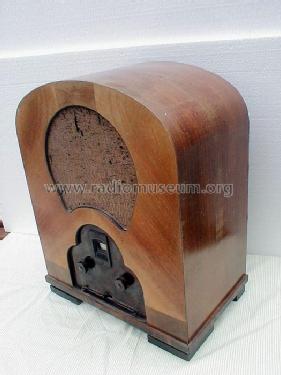

Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 376 x 473 x 235 mm / 14.8 x 18.6 x 9.3 inch
Notes

evtl. 2 Modelle ????; oben rundlich

Für die Kraftröhre wird (später ?) an Stelle der 3NFW die 3NFK genannt.

Net weight (2.2 lb = 1 kg) 11.5 kg / 25 lb 5.3 oz (25.33 lb)
Price in first year of sale 195.00 RM
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Funk Versand Kredit 1932/33
